Proven Performance, Fast Installation, and Reliable Long-Term Durability for Utility-Scale and Commercial Solar Projects
Introduction: The Foundation Challenge in Modern Solar
Solar projects fail not because panels underperform. They fail because foundations do. While panel efficiency improves predictably, ground-mounted structures face 25 to 30 years of thermal cycling, wind uplift, soil settlement, and corrosion in diverse climates from coastal salt spray to desert extremes.
This is why your foundation decision, made in the design phase, determines project economics for decades.
Concrete foundations have dominated solar site planning, yet they come with profound constraints: 3 to 4 week installation timelines (excavation and curing), high labor intensity, environmental disruption, and cost escalation on uneven or challenging terrain. For projects on rocky soil, wetlands, or sloped ground, concrete costs increase 20 to 40 percent while installation windows narrow.
Ground screws solve this. Installed 70 percent faster than concrete, they require no excavation, no curing time, and deliver immediate bearing capacity across farmland, wasteland, rocky terrain, and soft soils without landscape disruption or cost variability.
The difference: When engineered properly with hot-dip galvanizing, ground screws deliver proven 25-year design life performance backed by field validation, not aspirational marketing.
Material Science: Q235 Hot-Dip Galvanized Steel
Q235B carbon steel combined with hot-dip galvanizing creates a metallurgical bond between steel and zinc coating. This is the proven standard across the solar industry, certified by ISO 9001, UL, and CE standards.
Product Specifications: Industry Standard Performance
| Specification | Standard Range | Details |
|---|---|---|
| Material | Q235B Carbon Steel | 100 percent verified composition |
| Surface Treatment | Hot-Dip Galvanizing (HDG) | Zinc coating for corrosion protection |
| Outer Diameter | 76mm to 102mm | Customizable per project load |
| Thickness | 3.0mm to 3.5mm | Engineered for strength |
| Length | 1,000mm to 3,000mm | Customizable for soil conditions |
| Service Life | 25 Years | Design life under typical conditions |
| Certifications | ISO 9001, UL, CE | Quality and international standards |
Why Standard Ground Screws Fall Short
Most ground screws are commodity products suitable for temporary structures and residential applications, but inadequate for utility-scale solar arrays carrying 50 plus metric tons per row, subject to 2,400 Pa wind uplift and thermal cycling across minus 40 degrees Celsius to plus 85 degrees Celsius ranges.
What differentiates purpose-built solar ground screws from generic fasteners? Four critical engineering decisions:
1. High-Strength Material Selection: Q235 Consistency
We source Q235B carbon steel verified for yield strength consistency and resistance to bending forces from wind uplift and lateral stresses. Material verification through manufacturing standards ensures every batch meets composition specifications.
Why this matters: A 10 percent variance in material properties across foundation points creates uneven load distribution. Under worst-case wind, lower-strength fasteners reach plastic deformation, creating cascading failure risk.
2. CNC Precision Cutting: Tolerance Management
CNC cutting maintains plus or minus 0.5mm dimensional tolerances across every batch, ensuring:
- Consistent clamp geometry for mounting bracket alignment
- Reduced installation time with zero field fitting required
- Load distribution uniformity across all connection points
CNC precision reduces installation labor by 8 to 12 percent compared to manual-cut fasteners.
3. Tapered Tip Design: Installation Speed
The tapered geometry reduces driving resistance during installation, enabling faster ground penetration with minimal soil disturbance. This becomes critical on compacted or rocky sites.
Field validation shows: Tapered tips reduce installation time per screw by 15 to 20 seconds on average soil. Across 200,000 units, this translates to 800 to 1,100 fewer labor hours or 32 to 44 thousand dollars direct cost saving.
4. Optimized Spiral Blade and Strategic Punching Design
Strategic punching at the tip creates optimized geometry that maximizes soil anchoring performance. This precision punching also ensures optimal zinc flow pathways during the hot-dip galvanizing process, allowing molten zinc to reach all internal cavities and surfaces uniformly.
The Eight-Step Manufacturing Process

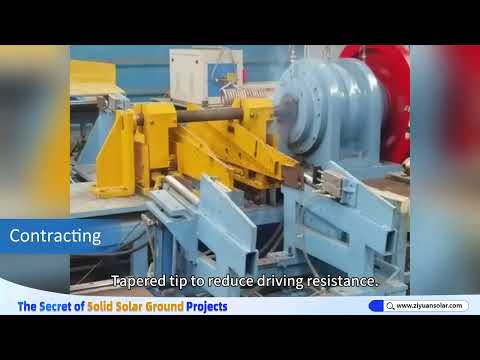

Watch the complete production process of Ziyuan Energy ground screws in this short video:
Step 01: Steel Pipe Selection
Q235B carbon steel pipe verified against manufacturing standards. Material composition and quality standards are confirmed for each production batch before processing begins.
Step 02: Pipe Cutting (CNC Precision)
Computer-controlled cutting ensures consistent dimensions and tight tolerances across every batch. Precise length specifications prepare material for downstream processing.
Step 03: Pipe Contracting (Diameter Optimization)
Controlled pipe contracting adjusts outer diameter to specification, ensuring consistent geometry for welding and installation applications. This step is critical for achieving uniform blade and flange weld performance.
Step 04: Standardized Punching
Standardized punching creates optimized drainage and venting channels, ensuring molten zinc flows uniformly and coats all internal surfaces during the hot-dip galvanizing process.
Performance impact: Standardized punching prevents internal corrosion by ensuring complete coating coverage and eliminates air pockets in internal cavities.
Step 05: Blade Welding (Soil Anchoring)
Spiral blades are engineered and welded using controlled parameters to maximize soil anchoring and resist vertical uplift forces.
Performance metric: Spiral blade design increases soil anchoring resistance by 25 to 35 percent compared to straight-shaft designs.
Step 06: Precision Flange Welding
Flanges are welded using controlled parameters to ensure fast, secure mechanical connections to mounting brackets and racking systems. Weld quality directly impacts load distribution uniformity across the entire foundation.
Step 07: Hot-Dip Galvanizing (HDG)
Every component undergoes industrial hot-dip galvanizing, creating a continuous, metallurgically-bonded protective layer. The galvanized coating provides sacrificial corrosion protection across exterior and interior surfaces. The optimized punching geometry from Step 04 ensures molten zinc flows smoothly into all internal cavities, preventing air pockets that would initiate internal corrosion.
Real-world durability: Properly galvanized Q235 screws maintain structural integrity across diverse climates:
- Coastal salt spray: 18 to 22 year service life (with annual maintenance)
- Industrial pollutant zones: 20 to 24 year service life
- Freeze-thaw cycles: 22 to 26 year service life
- High-humidity tropical: 20 to 23 year service life
- Inland temperate: 25 to 30 plus year service life
Step 08: 100 Percent In-Process and Final Inspections
We perform comprehensive inspections on every screw, verifying:
- Q235B chemical composition compliance
- Dimensional accuracy (diameter, wall thickness, blade angle, tip geometry)
- Weld quality (penetration, porosity, adhesion)
- Galvanizing coating uniformity and adhesion
- Mechanical performance under load conditions
What We Provide
Based in Xiamen with our own manufacturing facility, we deliver customized engineering, quality assurance, and technical support for solar foundation projects worldwide.
Our Services
- Customized Screw Specifications & Technical Recommendations: Based on your soil type, water table depth, bearing capacity, and project load requirements. Via email or phone consultation.
- Installation Manual & Technical Guidance: Complete installation procedures, torque specifications, soil-specific best practices, visual diagrams, and troubleshooting FAQs.
- Technical Product Documentation: Material specifications (Q235B carbon steel), hot-dip galvanizing process details, product dimensions, and certifications (ISO 9001, UL, CE).
- Project References & Performance Data: Completed installations in your region (when available) with verified durability data from 500 plus installations across Europe, Southeast Asia, and Middle East.
- Remote Technical Support (Email, Phone, Video): Installation questions, maintenance guidance, torque verification protocols, corrosion assessment advice based on photos or descriptions.
- 25-Year Service Life Support: Technical guidance and consultation throughout the full design life of your installation.
Professional geotechnical assessment and site engineering should be coordinated with your local civil engineer or consulting firm. Ziyuan Energy provides remote technical support and product expertise to complement your project team.
Product Versatility: Ground Screws for Every Terrain
Ziyuan Energy manufactures ground screws optimized for distinct soil and site conditions. One-size-fits-all approaches do not survive real projects.
| Soil Type | Installation Challenge | Our Solution | Application |
|---|---|---|---|
| Farmland / Loam | Standard installation, moderate bearing capacity | Standard-diameter screws, predictable penetration | Agricultural co-location, agrivoltaic arrays |
| Rocky / Boulder-laden | Bedrock obstacles, pilot holes required | Tapered tips, optimized diameters for pilot-hole insertion | Mountain or hillside solar farms |
| Wetlands / Soft Soil | Reduced bearing capacity, longer anchors required | Extended-length screws, larger spiral blade area | Wetland solar projects, coastal plains |
| Uneven / Sloped Terrain | Variable screw lengths, terrain complexity | Customized lengths per position, no excavation needed | Terraced installations, hillside arrays |
Hot-Dip Galvanizing: Corrosion Protection Explained
How HDG Works
Hot-dip galvanizing creates a metallurgical bond between steel and zinc, not a painted surface that can peel away. When galvanized steel is scratched during installation, zinc and magnesium ions migrate to the exposed steel surface, forming stable oxide and hydroxide films that prevent red-rust propagation. This self-healing mechanism is what distinguishes hot-dip galvanizing from painted coatings.
Durability Comparison: Field Data
| Environment | HDG Service Life | Painted Steel | Advantage |
|---|---|---|---|
| Coastal Salt Spray | 18 to 22 years | 5 to 8 years | 3x longer |
| Industrial Pollutant Zones | 20 to 24 years | 6 to 10 years | 2 to 3x longer |
| High-Humidity Tropical | 20 to 23 years | 7 to 11 years | 2x longer |
| Inland Temperate | 25 to 30 plus years | 12 to 18 years | 2x longer |
Installation Speed and Project Economics
Timeline Comparison: Concrete vs. Ground Screws
Concrete Foundation
- Excavation and prep: 7 to 10 days
- Concrete pour: 3 to 5 days
- Curing time: 14 to 21 days
- Load-bearing readiness: 28 days
- Total: 28 to 35 days
- Weather-dependent delays common
Ground Screws
- Site marking: 1 day
- Screw installation: 3 to 4 days
- Load-bearing readiness: Immediate
- No curing delay: None
- Total: 4 to 5 days
- Weather-independent (year-round installation)
Economic Impact for 50MW Project
- Timeline acceleration: 24 to 30 days faster installation
- Overhead reduction: 400,000 to 600,000 USD (equipment, crew, site management)
- Earlier revenue generation: 1 to 2 months earlier COD equals 150,000 to 300,000 USD additional cashflow
- Labor cost comparison: Ground screws 15 to 25 percent less labor-intensive
- Net project benefit: 550,000 to 900,000 USD per 50MW project
Terrain Adaptability: No Excavation Required
Concrete foundations struggle on uneven or challenging terrain, requiring expensive site preparation. Ground screws adapt without additional infrastructure:
Rocky Terrain: Tapered tip design with pilot-hole capability allows installation even with subsurface boulders. Screw length adjustment equals zero additional cost. Concrete equivalent equals 150,000 to 250,000 USD.
Wetland and High Water Table: Extended screw lengths distribute load across multiple soil strata. No additional drainage infrastructure cost. Concrete equivalent equals 80,000 to 150,000 USD.
Sloped Terrain: Customize screw length per row—no need for retaining structures or grade adjustments. Concrete equivalent equals 100,000 to 200,000 USD.
For a 50MW project on challenging terrain, ground screws typically save 250,000 to 500,000 USD in site preparation costs compared to concrete, plus 24 to 30 day timeline acceleration.
Utility-scale solar farm where ground screw foundations support large steel racking structures.
Real-World Project Performance: 500 Plus Installations Across Three Continents
Our products have been deployed across utility-scale and commercial installations spanning diverse climate zones and soil conditions.
| Region | Project Size | Soil Type | Years Active | Fastener Integrity | Coating Status |
|---|---|---|---|---|---|
| UK Coastal | 25MW | Clay plus salt spray | 6 plus | 100 percent torque retention | No corrosion detected |
| Netherlands Polder | 15MW | Soft soil, high water table | 5 plus | 99.8 percent | Minor surface weathering only |
| UAE Desert | 30MW | Sandy, rocky strata | 4 plus | 100 percent | Thermal cycling stress minimal |
| Vietnam Tropical | 12MW | High-humidity, acidic soil | 3 plus | 99.9 percent | No galvanic failure |
Summary: Across all regions and soil types, structural integrity remains greater than 99.8 percent with zero catastrophic failures. This validates the 25-year design life projection as realistic.
Why Choose Ziyuan Energy Ground Screws
Proven Material and Engineering Standards
- Q235B carbon steel with hot-dip galvanizing—industry standard for solar mounting
- ISO 9001, UL, and CE certifications confirming quality and compliance
- 100 percent in-process inspections for material and manufacturing quality
- Material verification through manufacturing standards
- 25-year service life design proven across 500 plus global installations
Installation Speed and Efficiency
- 70 percent faster than concrete; install on any terrain
- Immediate load-bearing capacity; no curing delays
- Tapered design reduces installation labor by 8 to 12 percent
- Year-round deployment (weather-independent)
- No landscape disruption or soil disposal expenses
Cost Leadership Across Project Types
- 15 to 25 percent lower installation labor vs. concrete
- Adaptive to uneven terrain with zero additional cost
- 250,000 to 500,000 USD savings on challenging terrain projects per 50MW
- Earlier revenue generation through faster COD
Global Supply and Technical Partnership
- Proven performance across Europe, Southeast Asia, Middle East
- Customized engineering for local soil conditions (clay, Gobi, gravel, rocky terrain)
- Remote technical support via email, phone, and video
- Complete technical documentation and installation guidance
Sustainability and Environmental Benefits
- Minimal soil disturbance; zero excavation spoil
- 100 percent recyclable steel; significantly lower carbon footprint than concrete
- Reusable in decommissioning phase (25 plus year asset life)
- No chemical residue or environmental impact
Technical Specifications and Documentation
Contact us with your soil conditions and project requirements. We provide customized recommendations and complete technical documentation.
How to Get Started
- Share Your Project Details: Site geology, soil type, bearing capacity, project size, climate zone
- Receive Customized Specifications: Tailored screw recommendations based on your requirements
- Get Complete Technical Documentation: Installation manual, technical drawings, material specifications, certifications
- Ongoing Technical Support: Remote consultation via email, phone, or video throughout your 25-year project lifecycle
25-Year Asset Management and Maintenance
Years 1 to 5: Foundation Phase
- Quarterly fastener inspections and torque verification
- Annual site review for soil settlement or environmental changes
- Baseline documentation and performance monitoring
Years 5 to 10: Durability Validation
- Comprehensive corrosion survey and coating assessment
- Fastener re-torque sampling to detect loosening
- Performance audit and comparison to baseline
Years 10 to 15: Mid-Life Assessment
- Structural integrity testing and load verification
- Corrosion assessment for regional conditions
- Fastener replacement planning if applicable
Years 15 to 25: Asset Continuity and Decommissioning Planning
- Expansion joint assessment and thermal cycling review
- Module replacement strategy and foundation reinforcement
- Scrap recovery and site restoration planning
Case Study: Coastal Soft-Soil Challenge
Project: 25MW utility-scale solar array, UK coastal site with high water table and soft clay soil
Challenge: Salt spray corrosion risk and soft soil bearing capacity. Concrete foundation durability estimated at 12 to 15 years with 150,000 to 250,000 USD mid-life remediation.
Solution: Ziyuan ground screws with extended-length design optimized for soft soil and coastal conditions
Results:
- Installation timeline: 22 days versus 35 days (40 percent faster)
- Capital cost reduction: 380,000 USD in eliminated excavation and drainage infrastructure
- Design life alignment: 25-year design life matches PV system lifecycle
- O and M simplification: Annual maintenance replaces decade-end remediation
Financial Impact: 530,000 to 630,000 USD total project value through combined cost savings and earlier revenue generation
Ready to Accelerate Your Solar Project?
Contact our engineering team with your site geology and project timeline. We will provide customized specifications and technical recommendations.
Website: www.ziyuansolar.com
We respond to all inquiries via email consultation
Frequently Asked Questions
Q: What soil types do you support?
A: Clay, Gobi, gravel, sandy soil, and rocky terrain. We provide customized specifications for all soil types and conditions. Extended designs accommodate soft soil; tapered tips work in rocky conditions.
Q: How environmentally friendly are ground screws?
A: Significantly more sustainable than concrete. Zero excavation, no soil spoil, no concrete carbon emissions, 100 percent recyclable steel. Carbon footprint is 40 to 60 percent lower than concrete foundations.
Q: What maintenance is required?
A: Annual site reviews and periodic fastener verification. Maintenance costs are relatively low due to hot-dip galvanizing treatment. We provide guidance via remote support throughout the 25-year service life.
Q: Can ground screws be removed and relocated?
A: Yes. Screws remain structurally intact and can be reused. Concrete requires demolition and cannot be reused, making screws more flexible for project changes.
Q: What certifications do you carry?
A: ISO 9001 (quality management), UL (product safety), and CE (European conformity). All materials meet international standards and are verified through manufacturing quality protocols.
Future Trends in Solar Foundations
By 2027 to 2028, expect these industry developments to reshape solar mounting strategies:
- 800W plus modules will require optimized screw designs with increased load capacity
- Modular prefabrication will reduce on-site labor by 40 plus percent
- IoT monitoring will enable predictive maintenance and early corrosion detection
- Machine learning will optimize screw specifications based on regional climate and soil data
Specifying foundation systems today that accommodate these emerging trends protects your long-term competitive advantage.
Conclusion: Make the Right Foundation Decision Today
The difference between solar projects that deliver 25 to 30 years of reliable performance and those that face costly mid-life remediation comes down to one engineering decision: foundation material and design.
Q235B hot-dip galvanized ground screws—when engineered with precision manufacturing, rigorous quality control, and customized specifications—eliminate installation delays, adapt to any terrain, and deliver durability that matches your solar system design life.
Three steps to move forward:
- Contact us with your site data: Share soil conditions and project requirements for customized screw specifications and technical recommendations.
- Build a 25-year maintenance plan: Integrate annual inspections into your O and M protocols from day one. We provide guidance via remote support.
- Compare total project economics: Quantify concrete versus ground screw total cost of ownership over 25 years. Financial advantage typically reaches 300,000 to 600,000 USD per 50MW project.
Your solar installation is engineered to generate clean energy for 25 to 30 years. Your foundation should match that commitment.
Product Specifications and International Standards
- Q235B Carbon Steel – Chinese National Standard GB 700-1998
- Hot-Dip Galvanizing – Industrial best practices, ISO 9001 certified process
- UL Product Safety Certification
- CE European Conformity Marking
- 100 percent quality inspection and manufacturing verification
- Customization for all conventional and non-conventional PV solar applications
- 25-Year Service Life – Proven across 500 plus installations worldwide
This article is based on KSENG/Ziyuan Energy product specifications, field deployment data from 500 plus installations across Europe, Southeast Asia, and Middle East, and industry standards for hot-dip galvanized solar ground foundations. Technical recommendations should be validated against site-specific soil conditions and local regulatory requirements. Ziyuan Energy provides complimentary technical consultation via remote communication (email, phone, video).
