Steel Cantilever Carport Structure - Commercial Parking Shed Solutions | China Supplier

Name: Steel Cantilever Carport Structure - Commercial Parking Shed Solutions | China Supplier
Rating: 4.9 (85 reviews)

Ziyuan's Steel Cantilever Carport Structure features hot-dip galvanized durable frames designed for fast installation and superior weather resistance. Ideal for commercial and residential solar parking, it maximizes energy output while protecting vehicles. Fully customizable and built to last.

Brand: Ziyuan
Product Origin:XIAMEN
Material: Carbon Steel
Warranty: 12 years
Service Life: 25 years
Certification: ISO9001/CE

Product Detail

Product Description

Steel Cantilever Carport Structure – EV Charging & Renewable Energy Solution

Steel Cantilever Carport Structureuse hot-dip galvanized Q235B steel for exceptional strength and corrosion resistance. Their modular design fits varied panel layouts and parking configurations, enabling fast, low-disruption installation. Engineered to international standards, these structures endure high wind and snow loads while providing durable vehicle shelter and efficient solar energy generation.

Key Benefits of Solar Carport Structures:

✅ Modern Aesthetic Engineering:Sleek architectural design seamlessly blends contemporary aesthetics with structural functionality, enhancing property value while delivering practical energy solutions.
✅Premium Carbon Steel Construction: High-strength Q235B steel with hot-dip galvanized coating ensures exceptional structural stability, load-bearing capacity, and 25+ year service life.
✅Advanced Weather Protection: Specially treated carbon steel withstands extreme conditions including high winds up to 60m/s, heavy snow loads, and corrosive environments with superior resistance.
✅Flexible Custom Solutions:Tailored engineering accommodates diverse carport configurations, panel orientations, and site-specific requirements for optimal space utilization and energy output.
✅Streamlined Installation Process: Modular pre-fabricated components enable fast, efficient assembly with minimal site disruption and reduced labor costs.
✅Integrated Smart Features: Compatible with EV charging infrastructure, LED lighting systems, and smart monitoring technology for comprehensive sustainable transportation hubs.

Carbon Steel Solar Carport Mounting System Overview

MainParts List

1. Beam Kit

2. Steel Plate

3. Guide Gutter

4. Carport Rail

5. Rail Clamp

6. End Clamp

7. Mid Clamp

Features

Rapid Installation & Cost Efficiency
Pre-Fabricated Modular Design: Revolutionary pre-assembled components with simplified hardware enable 40% faster on-site installation, significantly reducing labor costs and construction downtime. Our precision-engineered framework optimizes steel consumption while maintaining superior structural integrity, delivering lower transport costs and overall project economics without compromising durability.
Superior Weather Protection & Longevity
Premium Hot-Dip Galvanized Steel Coating: Advanced zinc protection ensures 25+ year corrosion resistance against harsh environmental conditions including UV radiation, rain, hail, and snow loads. This fire-resistant, non-combustible material provides three times longer lifespan compared to non-galvanized alternatives, offering exceptional value and minimal maintenance requirements.
Waterproof Design & Vehicle Protection
Integrated Drainage System: Engineered weatherproof canopy with optimized water management protects vehicles from sun damage, paint fading, and interior deterioration. Our structures maintain lower vehicle interior temperatures, reduce maintenance frequency, and extend vehicle lifespan while providing comfortable access during extreme weather conditions.
Space-Efficient Cantilever Structure
Single-Post Design Advantage: Innovative cantilever configuration maximizes parking capacity and solar array efficiency compared to traditional multi-post systems. The unobstructed open design enables easier vehicle maneuvering, optimizes space utilization, and accommodates various parking lot layouts while supporting maximum panel installation density.
Dual-Functionality Energy Solution
Integrated Solar & Parking: Transform underutilized parking areas into clean energy generation assets while providing premium vehicle shelter. Perfect for commercial facilities, shopping centers, office buildings, and industrial sites seeking sustainable infrastructure that reduces operational costs and enhances property value.
Custom Design & Modern Aesthetics
Tailored Solutions: Sleek contemporary architecture adaptable to diverse site requirements, branding needs, and local building codes. Customizable dimensions, finishes, and seamless integration of smart features including EV charging stations and LED lighting systems enhance both functionality and visual appeal.

Parameters

Parameter	Value
Product Name	Steel Cantilever Carport Structure
Application	Parking Lot
Material	Carbon Steel
Certification	ISO/SGS/CE
Color	Natural or Customized
Surface Treatment	HDG(hot dipped galvanized),Pre-galvanized,powder Coating,Anodized (Silver,Matt,Black)
Applicable Modules	Framed or Frameless Modules
Module Orientation	Portrait or Landscape
Wind Load Resistance	60 m/s
Snow Load Resistance	1.4 kN/m²
Warranty	12-year warranty
Service Life	25-year service life

Structure Details

Carbon Steel Solar Carport Mounting Structure

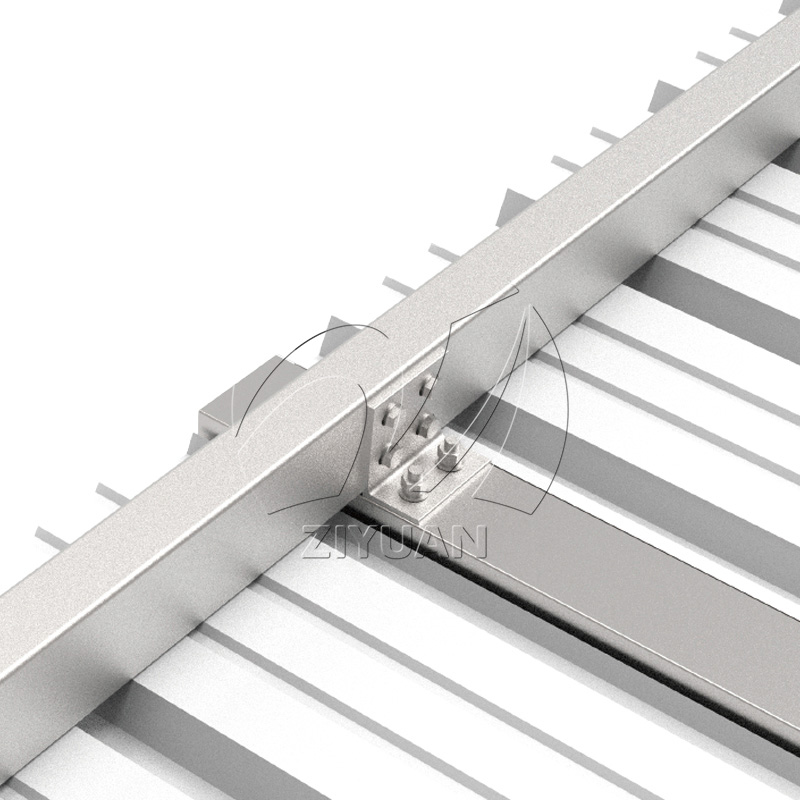

Connections in Carbon Steel Solar Carport Mounting

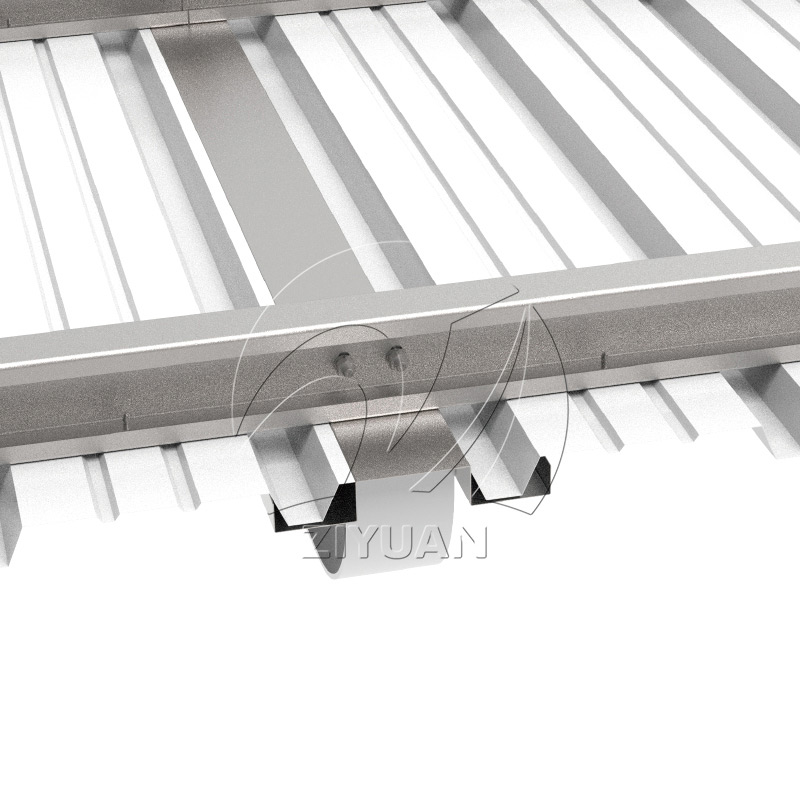

Connections in Carbon Steel Solar Carport Mounting Structure

Case Example

Perfect for commercial parking lots, shopping centers, office buildings, airports, and industrial facilities. Our Steel Cantilever Carport Structure maximize land use efficiency while generating clean energy for EV charging stations, building operations, or grid export.

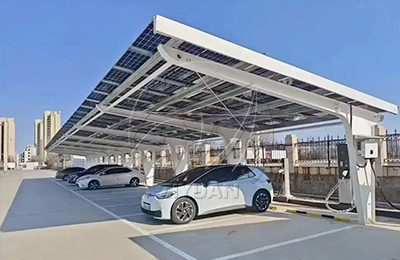

Carbon Steel Solar Carport Mounting system Case Study,Carbon Steel Solar Carport Mounting Implementation Example

Carbon steel solar carport mounting system with waterproof design in Xiamen factory | Heavy-duty galvanized steel parking shed structure | Commercial solar carport installation example

FAQ

Q1: What is the maximum wind load capacity of Steel Cantilever Carport Structure?

These systems are engineered to withstand wind loads up to 60m/s (216km/h or 133mph), with some configurations rated for even higher wind speeds depending on specific design requirements.

Q2: How long does installation typically take for a commercial solar carport project?

Installation duration varies by project size, but most commercial installations complete within 3-5 days per structure using modular pre-assembled components, significantly faster than traditional mounting systems.

Q3: What types of solar panels are compatible with carbon steel carport systems?

These mounting systems accommodate all major framed and frameless photovoltaic modules from leading manufacturers, supporting both monocrystalline and polycrystalline technologies in portrait or landscape orientations.

Q4: What is the expected service life of carbon steel solar carport structures?

With proper galvanized coating protection, carbon steel solar carports maintain structural integrity for 25+ years.

Q5: Do carbon steel carports require special foundation requirements?

Foundation options include concrete footings, ground screws, or ballasted systems depending on soil conditions and local building codes, with engineers providing site-specific recommendations.

Q6: How do carbon steel carports perform in areas with heavy snow loads?

These systems are designed for snow loads up to 1.4KN/m² (approximately 30psf), with sloped roof designs facilitating natural snow shedding and drainage.

Q7: Can existing parking lots be retrofitted with solar carport systems?

Yes, carbon steel carports are specifically designed for retrofit installation over existing parking areas, with minimal disruption to ongoing operations during construction.

Q8: What maintenance is required for carbon steel solar carport systems?

Minimal maintenance is required due to galvanized coating protection, with periodic visual inspections and standard solar panel cleaning comprising the primary maintenance activities.

Q9: Are carbon steel carports suitable for coastal environments?

High-quality galvanized coatings provide excellent corrosion resistance suitable for coastal applications, with enhanced protection options available for extreme marine environments.

Q10: How much parking space is typically lost to structural columns?

Modern cantilever designs minimize column placement between parking rows, with typical installations losing less than 5% of parking spaces while maximizing solar generation capacity.

Q11: What electrical components are included with carport systems?

Standard systems include mounting rails, clamps, and grounding equipment, with inverters, combiner boxes, and electrical panels available as integrated packages from certified suppliers.

Q12: Can carport systems integrate electric vehicle charging stations?

Yes, carbon steel carports readily accommodate EV charging infrastructure, creating comprehensive sustainable transportation hubs powered by on-site solar generation.

Q13: What permits are typically required for commercial carport installation?

Requirements vary by jurisdiction but typically include building permits, electrical permits, and utility interconnection agreements, with experienced installers handling permit coordination.

Q14: How do carport systems perform during extreme weather events?

Engineered to international standards, these structures withstand extreme conditions including hurricanes, hailstorms, and seismic activity when properly designed for local conditions.

Q15: What financing options are available for commercial solar carport projects?

Multiple financing structures including power purchase agreements, leasing arrangements, and traditional ownership models, often enhanced by federal tax incentives and state rebates.

Q16: How much electricity can a typical commercial carport system generate?

Generation capacity depends on system size and location, with typical commercial installations producing 100kW to several MW of clean energy annually.

Q17: Are there aesthetic customization options available for carport structures?

Yes, carbon steel carports offer various color options, architectural finishes, and branding opportunities to complement existing facility aesthetics and corporate identity.

Q18: What safety features are incorporated in carport system design?

Safety features include LED lighting integration, pedestrian protection barriers, emergency access provisions, and compliance with occupational safety standards during installation.

Q19: How do carbon steel carports compare to aluminum alternatives in terms of cost and performance?

Carbon steel systems typically offer 15-25% cost savings compared to aluminum while providing superior load-bearing capacity, making them ideal for large-scale commercial applications.

Q20: What warranty coverage is provided with carbon steel solar carport systems?

Standard warranties include 12-year structural warranties with 25-year performance guarantees, with some manufacturers offering extended coverage for critical components and galvanized coatings.
