Ziyuan Standing Seam Roof PV Mounting System — Fast, Non‑Penetrating Solar Installation

Solar projects live and die at the roofline. For installers and building owners who want speed, reliability and long service life, Ziyuan's Standing Seam Roof Mounting System removes the usual headaches—no drilling, no messy flashings, and a four-step workflow crews can trust.

Why Non-Penetrating Systems Work

Drilling into a metal roof adds labor, sealant and long-term leak risk. Non-penetrating seam clamps mechanically grip the raised seam and preserve the roof membrane, which helps protect the roof warranty and reduces future maintenance. This clamp-first approach is widely used on standing seam metal roofs because it minimizes roof penetrations while providing a secure anchor for racking and modules.

2026 Technical Compliance & Standards

Structural Safety: Fully compliant with ASCE 7-22 and AS/NZS 1170.2:2021 wind load requirements.
Material Excellence: Clamps made of high-strength Aluminum 6005-T5 with optional marine-grade anodizing for superior corrosion resistance.

Efficiency: Designed for rapid manual or robotic-assisted installation.

The streamlined four-step installation

'Ziyuan Energy' has simplified the installation process into four clear steps. Each step follows a standardized workflow easy to learn, hard to mess up. That means less guesswork on the roof and faster turnaround.

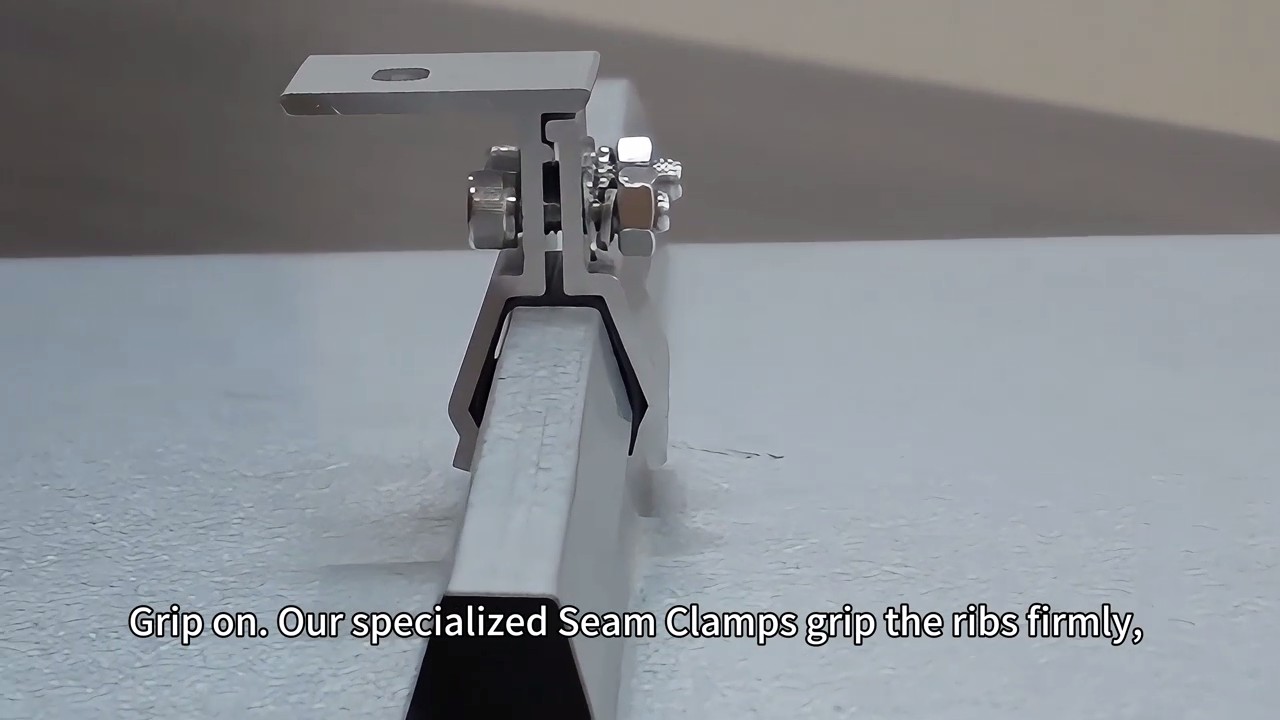

Step 1 — Grip on: Install Seam Clamps

Place the specialized aluminum seam clamps over the standing seam and tighten to the specified torque. Proper clamp selection and torquing create a rigid, load-bearing anchor without penetrating the roof. Correct torque prevents slippage and avoids deforming the seam.

Installing high-strength aluminum Ziyuan seam clamps with specified torque for 25-year leak-free roof integrity

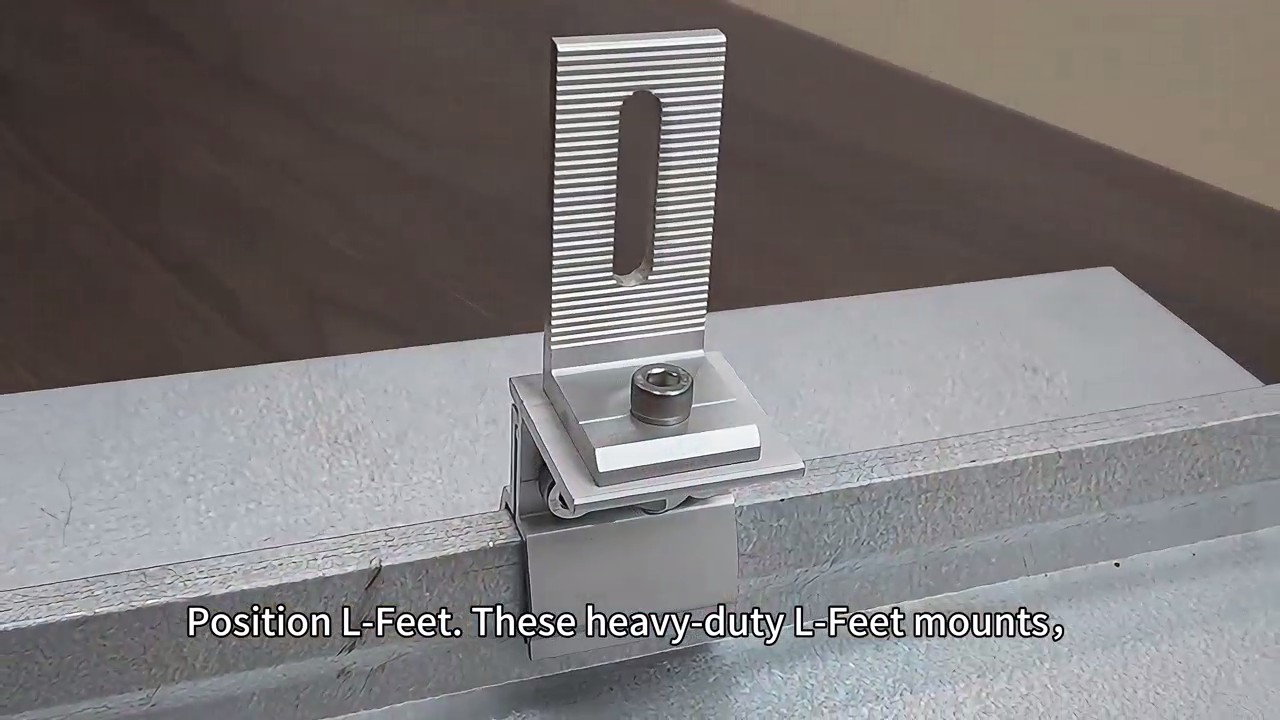

Step 2 — Position L-Feet

Attach heavy-duty L-Feet to the aluminum seam clamps. L-Feet provide height clearance for airflow, allow fine-tuning of rail alignment, and distribute loads across the clamps. The heavy-duty L-Feet provide a stable and secure connection for the rails.

Positioning heavy-duty L-Feet for optimal airflow and height clearance to support bifacial gain of 5-25%

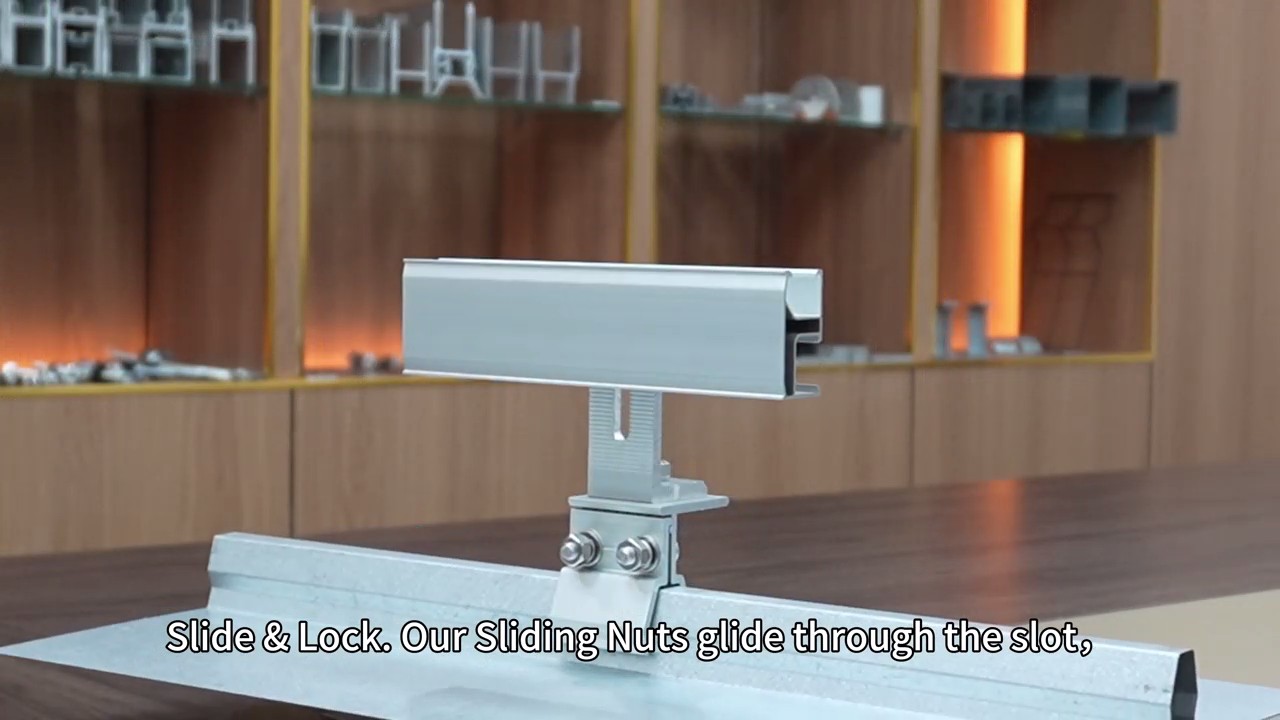

Step 3 — Slide & Lock: Install Rails

Slide rails onto the L-Feet using sliding nuts or bolts that glide through the rail channel. This method enables rapid alignment and bottom-side fastening, reducing on-roof time and improving rail straightness. Use captive or spring-loaded nuts to prevent migration during assembly.

Slide and lock rail installation optimized for ASCE 7-22 wind load standards and ultra-large format 700W+ modules

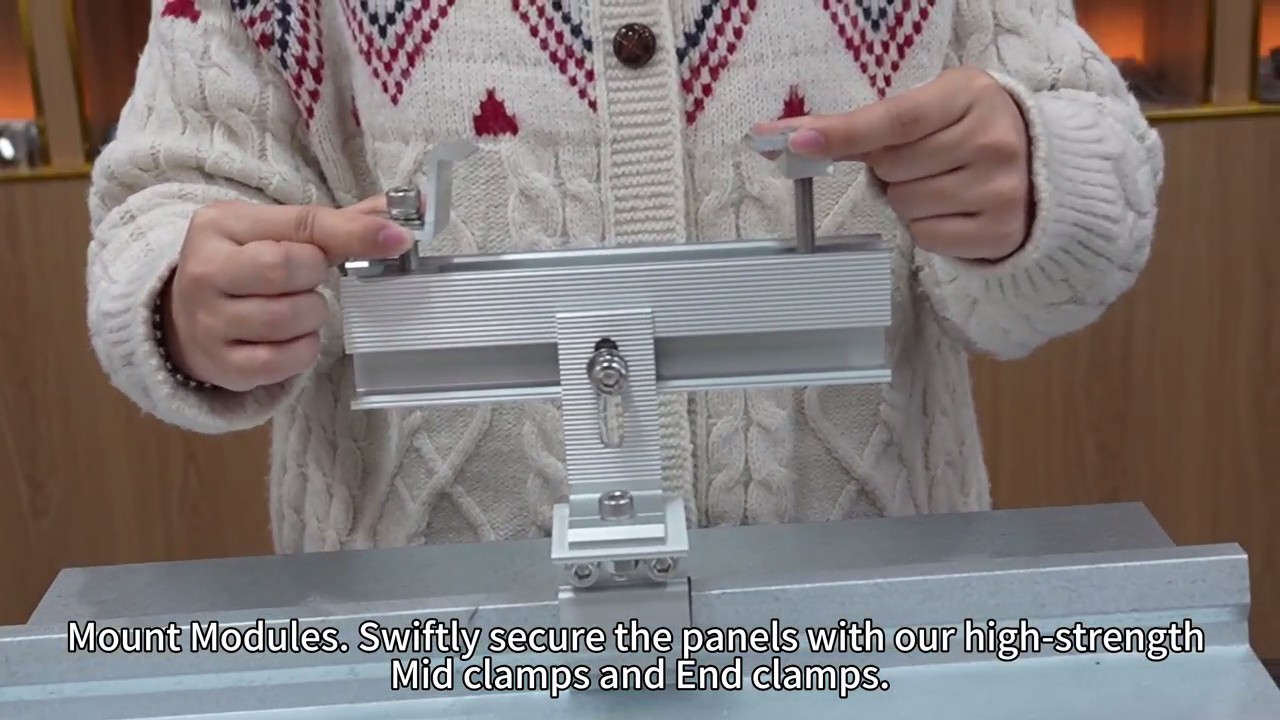

Step 4 — Mount Modules with Mid and End Clamps

Place PV modules on the rails and secure them with high-strength mid and end clamps. Tighten clamps to specified torque values to ensure mechanical retention and electrical bonding. Proper clamping resists wind uplift and thermal cycling over the system lifetime.

Securing 700W+ modules with high-strength clamps certified for 2400 Pa wind uplift and 5400 Pa snow load

What installers and owners actually gain

✔Faster installs: Crews spend less time measuring, drilling and sealing.
✔High quality: Fewer roof repairs and callbacks improve margins.
✔Reduced leak risk: Non-penetrating clamps preserve roof integrity and reduce long-term maintenance.

Ready to simplify your next rooftop project

Ziyuan supports installers with detailed product manuals, so you can install simply and confidently. Faster installs, fewer risks, and a better experience for installers and owners—that's the Ziyuan advantage.

Visit our official website for a free consultation and project-specific guidance.
