Ground Mount vs. Roof Mount Solar Racking: 2025 Engineering Guide

Q: Is ground mount solar cheaper than roof mount?

Generally, no. Ground mount solar systems typically cost 10-15% more than rooftop installations. This price difference is due to the additional materials required (steel piles, concrete foundations) and the labor for trenching cables from the array to your home's electrical panel.

Q: Will roof mount solar damage my roof or cause leaks?

Not if installed correctly. Modern racking systems use flashed attachments that slide under shingles to create a watertight seal, similar to a roof vent. In fact, solar panels can actually extend the life of the roof portion they cover by shielding it from UV rays and hail.

Ground Mount vs. Roof Mount Solar: Which Racking System is Right for You?

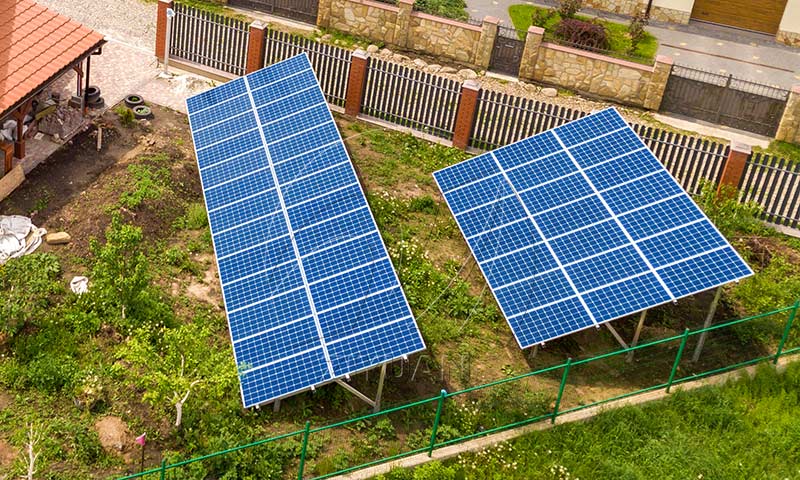

The Hidden Advantages of Ground Mount Solar

Unlike rooftop systems, which are limited by your roof's angle and orientation, ground mounts can be positioned for perfect solar azimuth (facing True South in the Northern Hemisphere).

Better Airflow: Panels stay cooler, increasing voltage and efficiency.
Easy Maintenance: No need to climb a ladder to clean snow or dust.
Expansion: Easier to add more panels later.

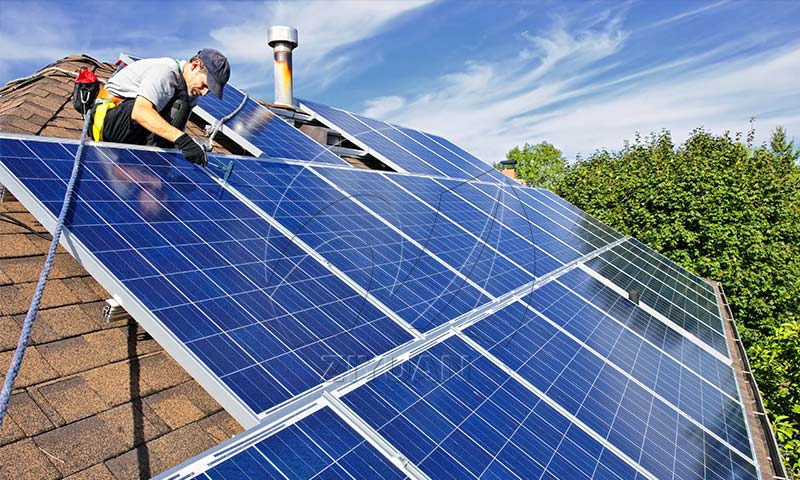

Rooftop Solar: The Cost-Effective Choice

Rooftop racking (utilizing standard rail systems) uses existing structures, making it significantly cheaper to install.

Lower Material Cost: No need for steel piles or concrete foundations.
Protection: Modern flashing mounts protect your roof warranty.

Comparison Table: Ground vs. Roof Racking

Feature	Rooftop Mount	Ground Mount
Installation Cost	Low ($)	High ($$$)
Efficiency	Medium (Depends on Roof)	High (Optimized Tilt)
Maintenance	Difficult (Requires Ladder)	Easy (Ground Level)
Space Required	Zero (Uses unused roof)	High (Uses yard space)

Frequently Asked Questions (FAQ)

Q: Is ground mount solar cheaper than roof mount?

Generally, no. Ground mount solar systems typically cost 10-15% more than rooftop installations. This price difference is due to the additional materials required (steel piles, concrete foundations) and the labor for trenching cables from the array to your home's electrical panel.

Q: Does ground mount solar produce more electricity?

Yes, in most cases. Ground mount systems operate at cooler temperatures because of better airflow beneath the panels, which improves voltage and efficiency. Additionally, they can be oriented to face the perfect azimuth (True South) and tilted at the optimal angle for your latitude.

Q: How far can ground mount solar be installed from the house?

Technically, it can be installed hundreds of feet away, but cost becomes a factor. As distance increases, you must use thicker gauge wire to prevent 'voltage drop' (energy loss). Most residential installs stay within 300-500 feet to keep trenching and copper wiring costs reasonable.

Q: Will roof mount solar damage my roof or cause leaks?

Not if installed correctly. Modern racking systems use flashed attachments that slide under shingles to create a watertight seal, similar to a roof vent. Properly installed systems do not void roof warranties.

Q: Do I need a concrete foundation for ground mount solar?

It depends on the soil conditions. Standard systems often use driven piles (steel beams driven into the earth) which are faster and cheaper. However, if your soil is very rocky, sandy, or loose, concrete footings or ground screws may be required.

Conclusion:
If you have ample land and want maximum production, go ground mount. If you want the fastest ROI and have a sturdy roof, stick to rooftop. Whatever you choose, ensure your installer uses high-quality aluminum racking to prevent corrosion.

Appendix: Technical Reference Data & Troubleshooting Matrix

Table 2: Common Racking Defects & Prevention Strategies

Defect Phenomenon	Root Cause	Consequence	Prevention Strategy
Galvanic Corrosion	Direct contact between Aluminum and Copper/Steel	Structural degradation, grounding failure	Use SS washers/WEEB; Isolate dissimilar metals
Rail Warping	Thermal expansion without expansion gaps	Bolt pull-out, glass breakage	Install expansion joints every 40-60 ft
Roof Leaks	Improper flashing installation or misaligned pilot holes	Interior water damage, mold growth	Use mounts with integrated flashing; seal all missed holes
Cable Abrasion	Loose cables rubbing against roof surface	Arc faults, fire risk, inverter shutdown	Use metal wire clips; secure cables tight to rails
Module Slippage	Insufficient clamp torque	Modules detaching in high winds	Use calibrated torque wrench; apply torque marks
