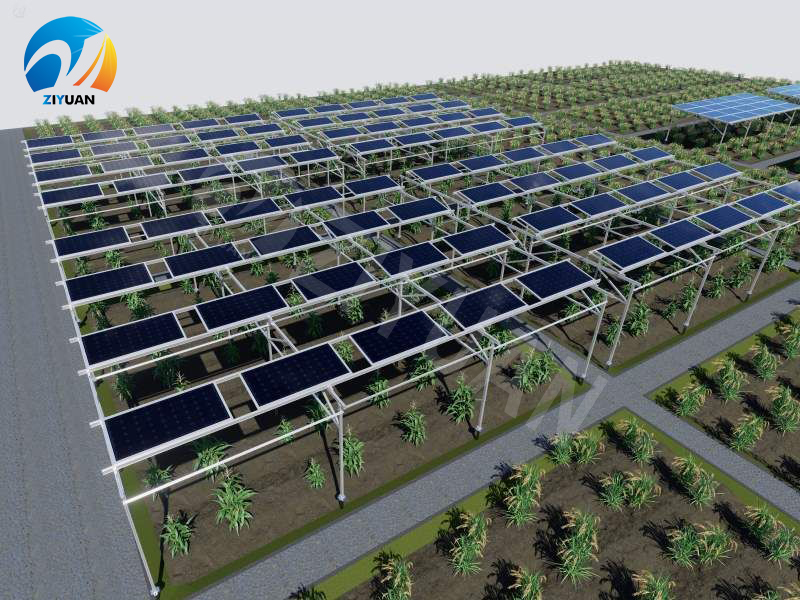

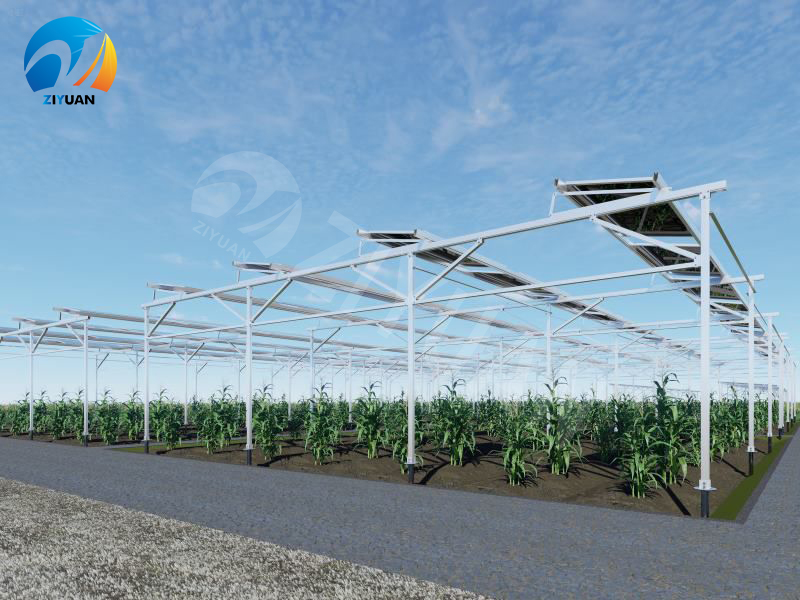

Agricultural solar mounting structures 01

Agricultural solar mounting structures 01

solar energy

Agricultural solar mounting structures, also known as Agri-PV systems, are innovative setups that combine traditional farming practices with solar photovoltaic technology on a single piece of land.

Item: Agricultural solar mounting structures
Payment: T/T, PAYPAL, Western Union, L/C
Product Origin: China,Fujian
Color: Silver
Shipping Port: XIAMEN, CHINA
Lead Time: 7-15 DAYS, NORMALLY
Brand: Ziyuan
Certification: CE, SGS, ISO, JIS
Material: AL6005-T5 & SUS304

Product Detail Installation Guide Advantage

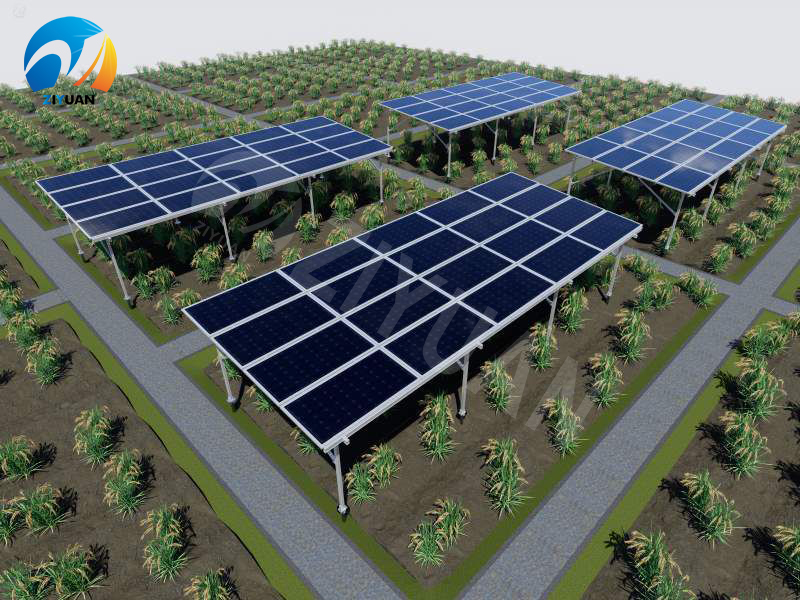

Agricultural solar mounting structures

Basic Introduction

Agricultural solar mounting structures, also known as Agri-PV systems, are innovative setups that combine traditional farming practices with solar photovoltaic technology on a single piece of land. This concept, pioneered by Armin Zastrow and Adolf Goetzberger in 1981, revolutionizes land utilization by enabling the coexistence of crops and solar panels while optimizing sunlight distribution between the two.

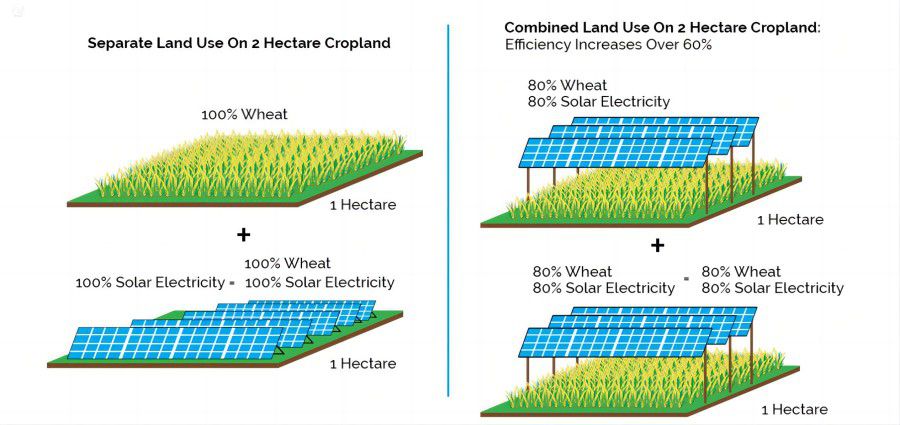

traditional farming vs agrivoltaics source:

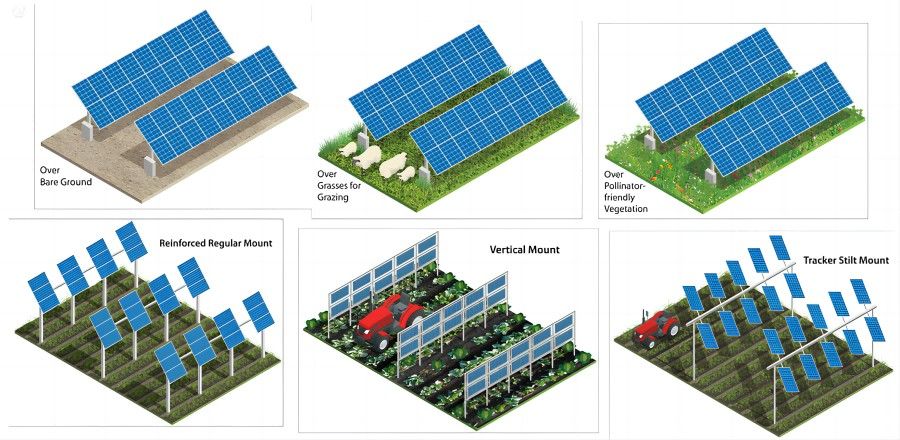

There are three design variants with detailed techno-commercial viability on the market.

Specification:

Brand	ZIYUAN
Material	AL6005/T5 & SUS304
Surface Coating	Sandblasting
Tilt Angle Range	0~60°
Design Code	JIS C 8955 2017
Standard	AS/NZS 1170
Wind Speed	60m/s
Snow Load	1.4KN/m²
Warranty	15years
Service Life	20years

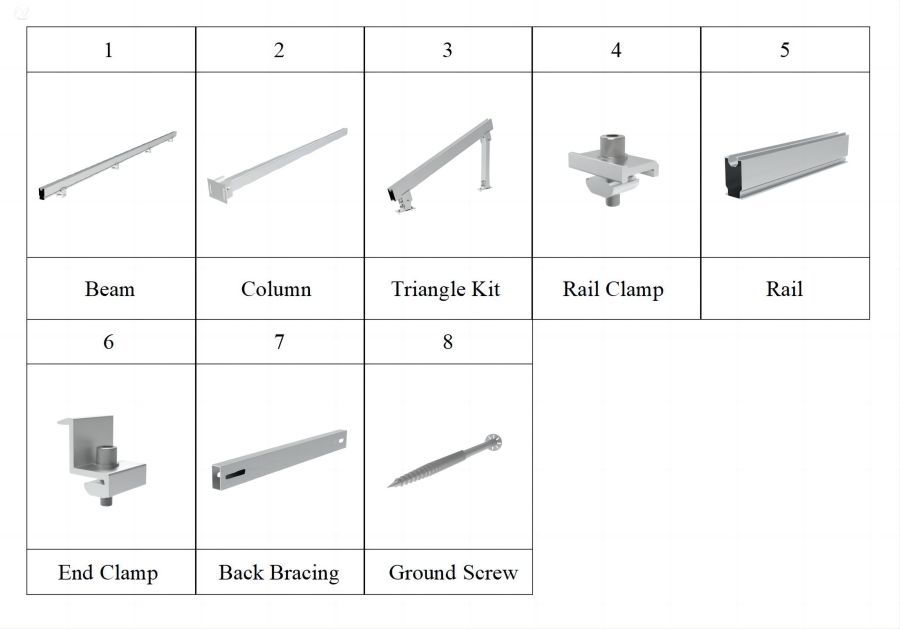

Components：

Material Parameters

Warranty:

ZIYUAN Energy guarantees continuous power generation for 25 to 30 years.

The structure offered by Ziyuan Energy has 25 years service life and we offer warranty for 12 years.

The power output decreases by 2% in the first year and then by 0.45% each year from the second year through the 30th year.

This long-term durability allows clients to make sustained investments and plan stable business operations.

Our Factory:

Product Package:

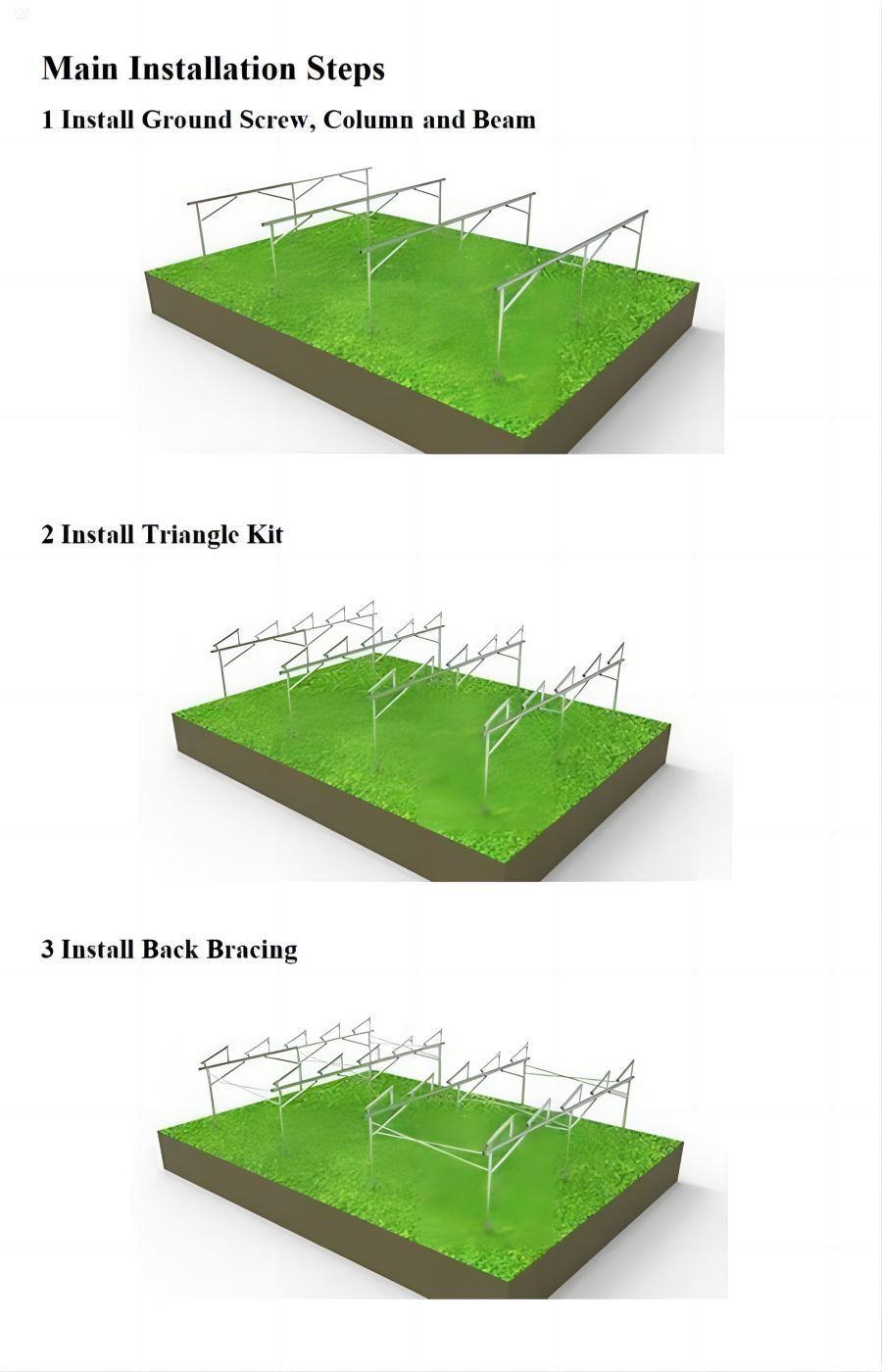

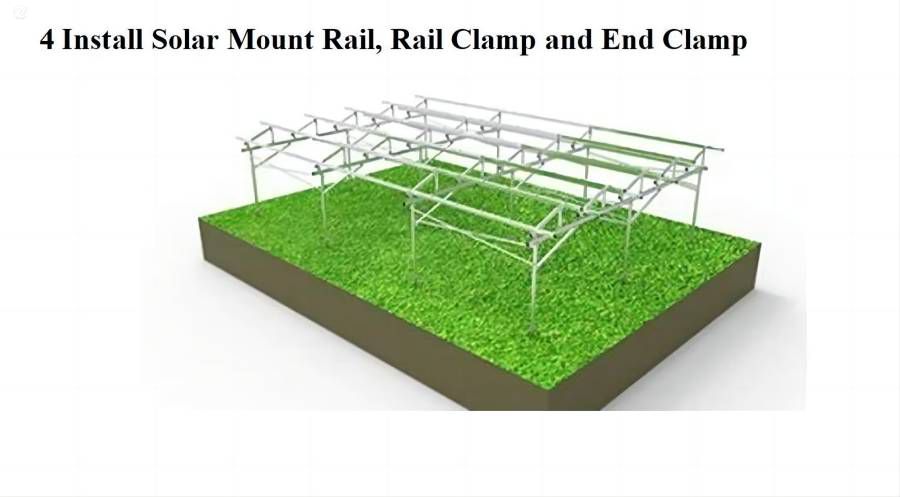

Installation Guide

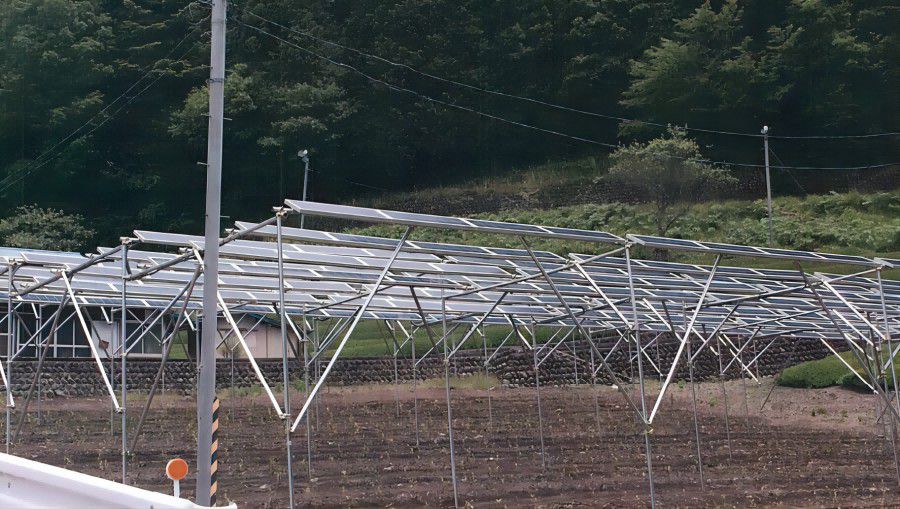

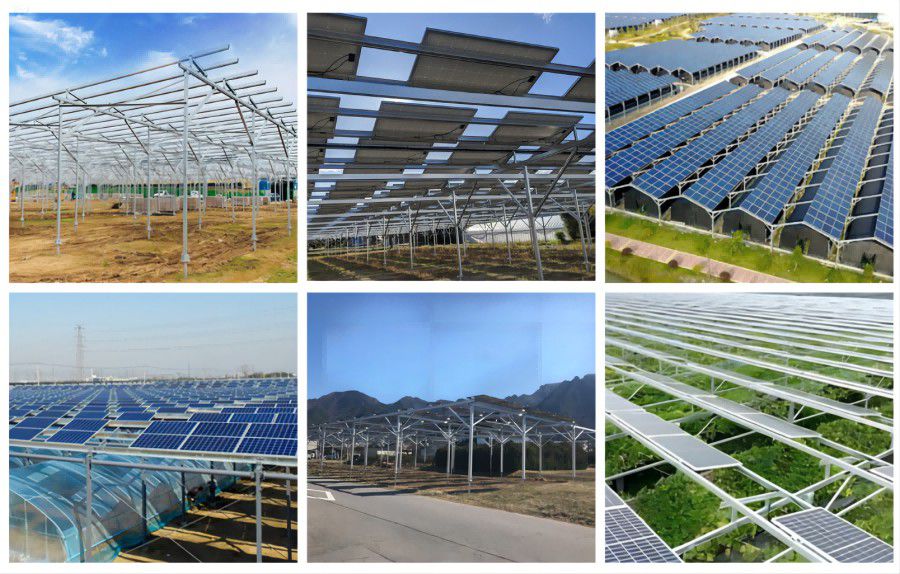

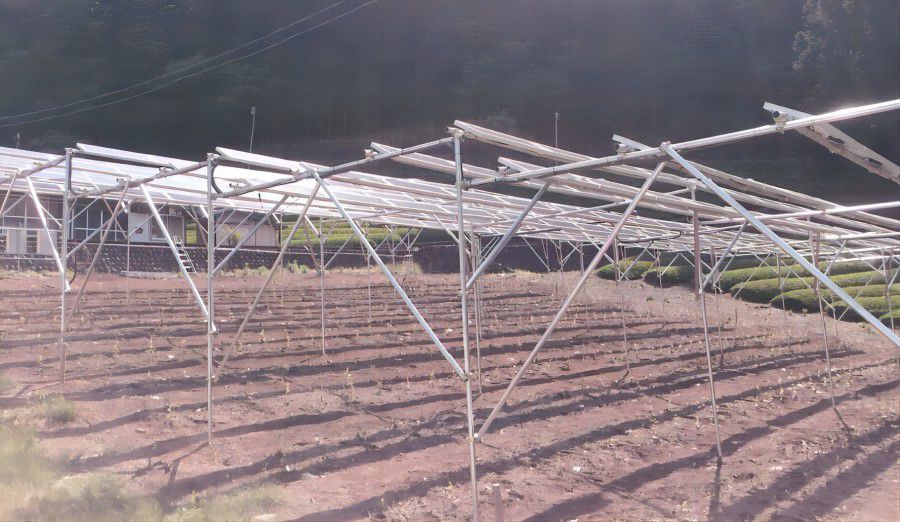

Project Cases

1.Own Factory & Strict QC

Ziyuan has own factory with more than 100 skilled and experienced workers, the production line is strictly in accordance with high standards and attach great importance to quality control and inspection.

2.Professional Service

Ziyuan has an excellent sales team, can quickly respond to customer inquiries and provide professional advice.

3.Experienced Engineer Team

The first-class production engineers, technicians and R & D team offer innovative design and reliable solution to customers based on more than 8 years of experiences.
