Balcony Solar Mount System

Balcony mounting kit allow solar panel hanged on the balcony rail. It's a mart and simple PV mounting solution for residential projects.

Item: Balcony Solar Mount System
Payment: T/T, PAYPAL, Western Union, L/C
Product Origin: China,Fujian
Color: Silver
Shipping Port: XIAMEN, CHINA
Lead Time: 7-15 DAYS, NORMALLY
Brand: Ziyuan
Certification: CE,SGS, ISO, JIS
Material: AL6005-T5 & SUS304

Product Detail Installation Guide Advantage

Balcony Solar Mount System

Balcony mounting kit allow solar panel hanged on the balcony rail. It's a mart and simple PV mounting solution for residential projects.

The main material of this mounting structure is aluminum alloy AL6005-T5 and stainless steel SUS304. The product has strong corrosion resistance.

This mounting kit has high pre-assembled characteristics and saves installation time and cost greatly.

Please kindly read the whole manual carefully before installation.

Specification:

Brand	ZIYUAN
Material	AL6005/T5 & Q235B & SUS304
Surface Coating	Anodizing & Hot-galvanizing
Tilt Angle Range	0~60°
Design Code	JIS C 8955 2017
Standard	AS/NZS 1170
Wind Speed	60m/s
Snow Load	1.4KN/m²
Warranty	15years
Service Life	20years

Warranty:

ZIYUAN Energy guarantees continuous power generation for 25 to 30 years.

The structure offered by Ziyuan Energy has 25 years service life and we offer warranty for 12 years.

The power output decreases by 2% in the first year and then by 0.45% each year from the second year through the 30th year.

This long-term durability allows clients to make sustained investments and plan stable business operations.

Installation Steps:

1.Drill a hole in the correct position as planned then install the EPDM rubber pad and L Feet, and lock the screw into the roof beam below.

2.Install the Rail on the L Feet, lock the bolt tightly and make sure all Rails are in same level.

3.Install the solar panel on the Rails with the End Clamp and Mid Clamp, lock the bolt tightly.

Our Factory:

Product Package:

Installation Guide

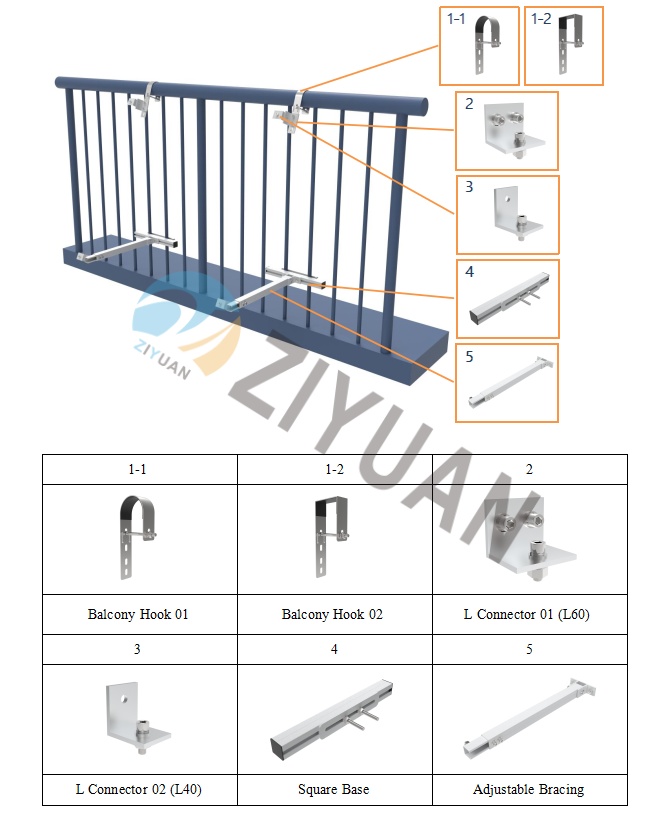

1 Installation of L Connector 02 (L40)

Install the L Connector 02 (L40) vertically on the mounting holes on the back of the solar panel, and lock the bolts (M8-20).

2 Installation of Balcony Hook

Select the proper Balcony Hook according to the balcony rail. Below steps take Balcony Hook 01 as an example.

2.1 Install the L Connector 01(L60) on the Balcony Hook, and lock the bolts (M8-25).

2.2 Lock the L Connector 01(L60) on the upper two L Connector 02(L40) as below. There is no need to lock the bolt too tightly now.

3 Installation of Adjustable Bracing

Install the Adjustable Bracing on the on the bottom two L Connector 02(L40) as below. There is no need to lock the bolt too tightly now.

4 Installation of Square Base

Connect the Square Base and Adjustable Bracing with T bolt M8-25 and lock tightly.

5 Install the complete kit on the balcony

5.1 Hang the complete kit on the balcony rail, and lock the bolt M8-110 tightly.

5.2 As per the tilt angle required, adjust the length of Adjustable Bracing then lock the bolt M8-25 tightly.

5.3 Fix the Square Base on the balcony columns with T bolt M8-60, and lock tightly.

5.4 Lock all bolts tightly.The installation is now complete
