Tile Roof Hook mounting system

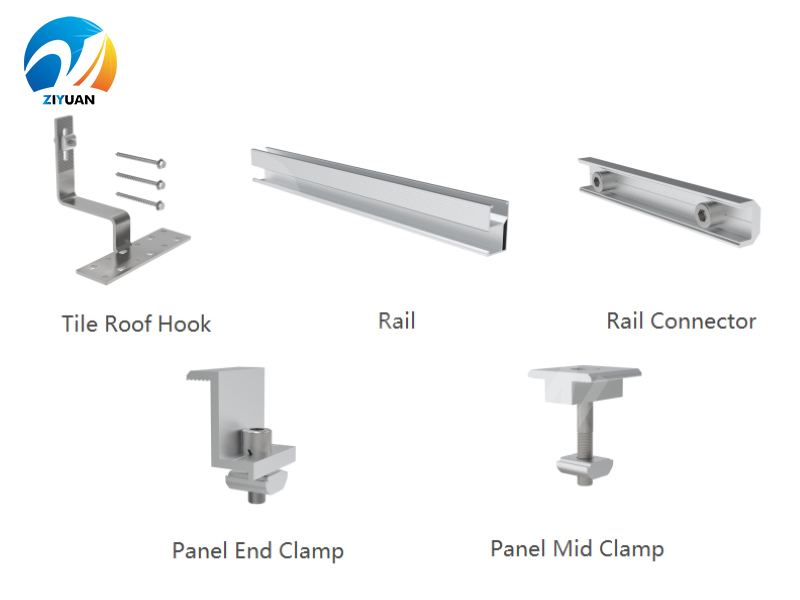

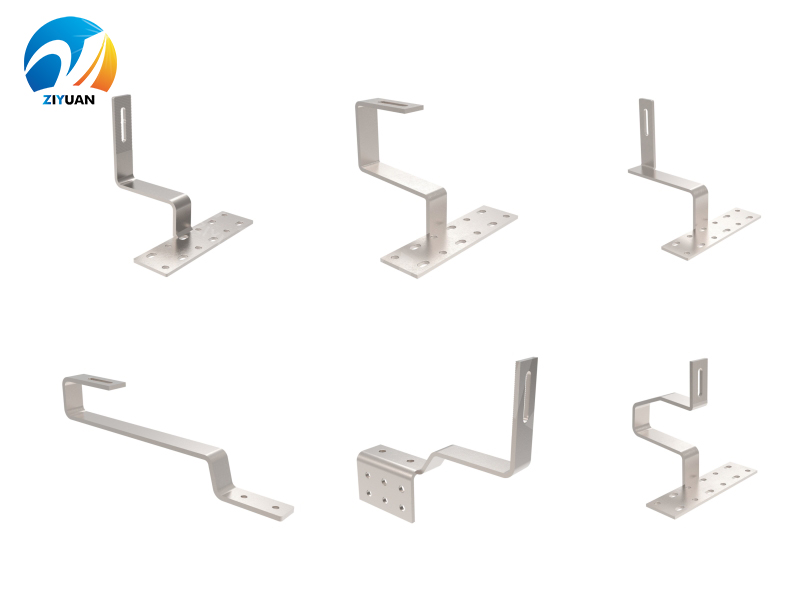

Tile Roof Hook mounting system is a common solution for ceramic tile and glazed tile rooftop, the main parts are Tile Roof Hook, Rail, Rail Connector, Mid Clamp and End Clamp.

Item No.: Tile Roof Hook mounting system
Payment: T/T, PAYPAL, Western Union, L/C
Product Origin: China,Fujian
Color: Silver
Shipping Port: XIAMEN, CHINA
Lead Time: 7-15 DAYS, NORMALLY
Brand: Ziyuan
Certification: CE,SGS
Material

Product Detail Advantage

Tile Roof Hook mounting system

Tile Roof Hook mounting system is a common solution for ceramic tile and glazed tile rooftop, the main parts are Tile Roof Hook, Rail, Rail Connector, Mid Clamp and End Clamp.

Specification:

Brand	ZIYUAN
Material	AL6005/T5 & SUS304 & SUS410
Surface Coating	Sandblasting
Tilt Angle Range	0~60°
Design Code	JIS C 8955 2017
Standard	AS/NZS 1170
Wind Speed	60m/s
Snow Load	1.4KN/m²
Warranty	15years
Service Life	20years

Warranty:

ZIYUAN Energy guarantees continuous power generation for 25 to 30 years.

The structure offered by Ziyuan Energy has 25 years service life and we offer warranty for 12 years.

The power output decreases by 2% in the first year and then by 0.45% each year from the second year through the 30th year.

This long-term durability allows clients to make sustained investments and plan stable business operations.

Installation Steps:

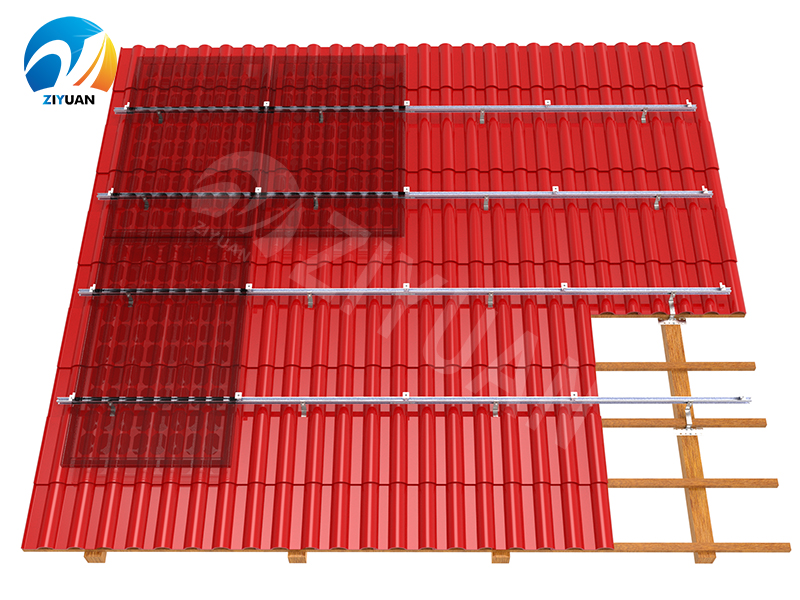

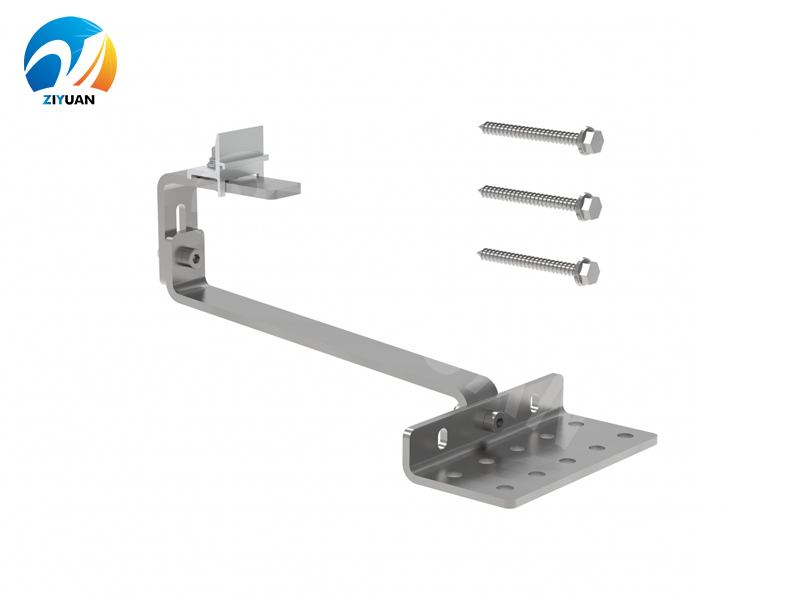

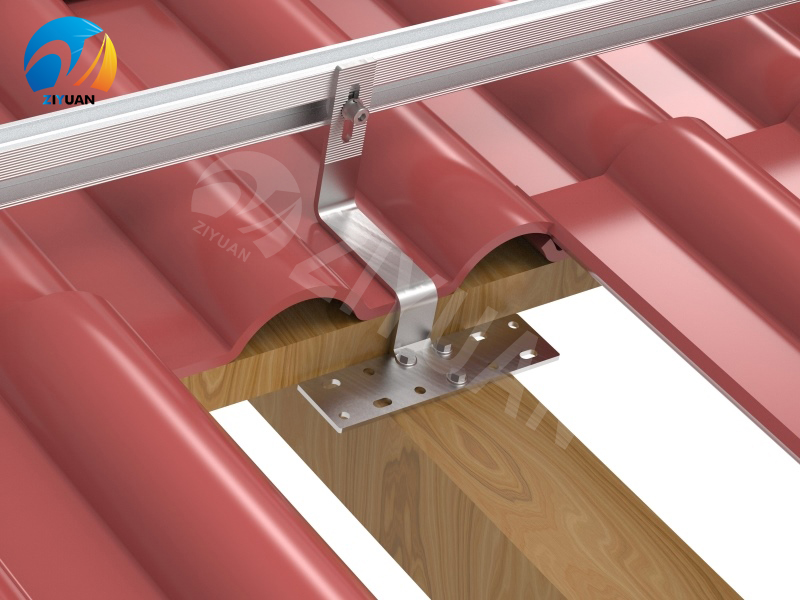

1.Lift the tiles and install the Tile Roof Hook on the roof purlin with the screws, then cover the tiles.

2.Install the Rail on the Tile Roof Hook, lock the bolt tightly and make sure all Rails are in same level.

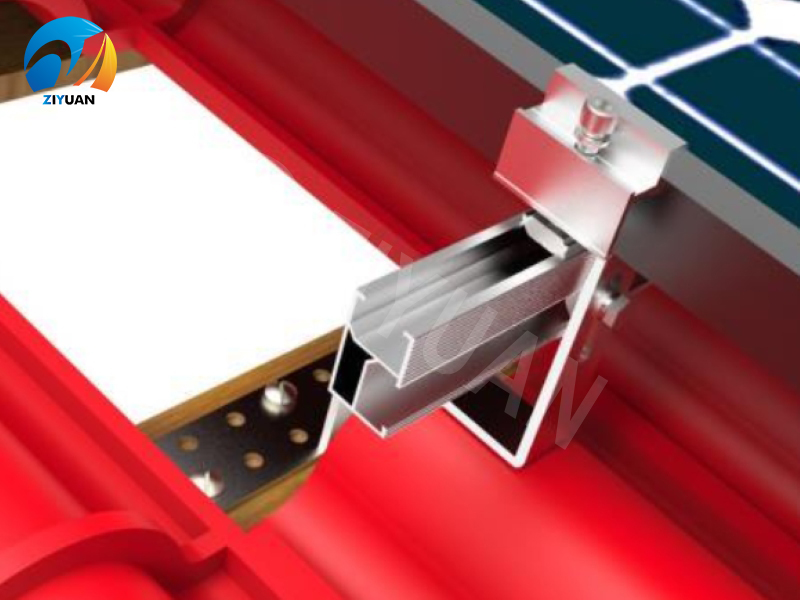

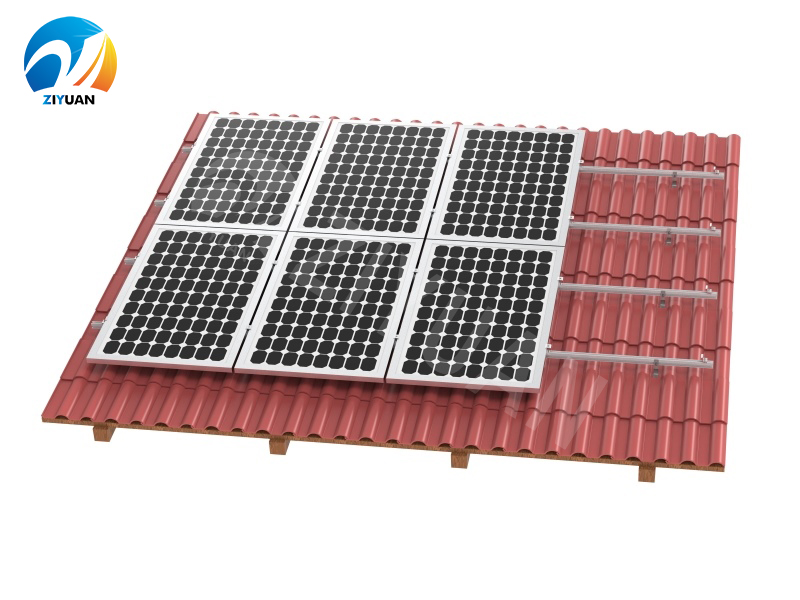

3.Install the solar panel on the Rails with the End Clamp and Mid Clamp, lock the bolt tightly.

Our Factory:

Product Package:

1.Own Factory & Strict QC

Ziyuan has own factory with more than 100 skilled and experienced workers, the production line is strictly in accordance with high standards and attach great importance to quality control and inspection.

2.Professional Service

Ziyuan has an excellent sales team, can quickly respond to customer inquiries and provide professional advice.

3.Experienced Engineer Team

The first-class production engineers, technicians and R & D team offer innovative design and reliable solution to customers based on more than 8 years of experiences.

No comment

Previous : Adjustable Leg mounting system Next : Flashing Plate mounting system

Product Detail

Tile Roof Hook mounting system

Tile Roof Hook mounting system is a common solution for ceramic tile and glazed tile rooftop, the main parts are Tile Roof Hook, Rail, Rail Connector, Mid Clamp and End Clamp.

Specification:

Brand	ZIYUAN
Material	AL6005/T5 & SUS304 & SUS410
Surface Coating	Sandblasting
Tilt Angle Range	0~60°
Design Code	JIS C 8955 2017
Standard	AS/NZS 1170
Wind Speed	60m/s
Snow Load	1.4KN/m²
Warranty	15years
Service Life	20years

Warranty:

ZIYUAN Energy guarantees continuous power generation for 25 to 30 years.

The structure offered by Ziyuan Energy has 25 years service life and we offer warranty for 12 years.

The power output decreases by 2% in the first year and then by 0.45% each year from the second year through the 30th year.

This long-term durability allows clients to make sustained investments and plan stable business operations.

Installation Steps:

1.Lift the tiles and install the Tile Roof Hook on the roof purlin with the screws, then cover the tiles.

2.Install the Rail on the Tile Roof Hook, lock the bolt tightly and make sure all Rails are in same level.

3.Install the solar panel on the Rails with the End Clamp and Mid Clamp, lock the bolt tightly.

Our Factory:

Product Package:

Advantage

1.Own Factory & Strict QC

Ziyuan has own factory with more than 100 skilled and experienced workers, the production line is strictly in accordance with high standards and attach great importance to quality control and inspection.

2.Professional Service

Ziyuan has an excellent sales team, can quickly respond to customer inquiries and provide professional advice.

3.Experienced Engineer Team

The first-class production engineers, technicians and R & D team offer innovative design and reliable solution to customers based on more than 8 years of experiences.
