Ground Adjustable Structure

The main material of this mounting structure is aluminum alloy AL6005-T5. The surface of the product has been anodized. The product is suitable for installation of large and medium-sized photovoltaic power plants.

Item: Ground Adjustable Structure
Payment: T/T, PAYPAL, Western Union, L/C
Product Origin: China,Fujian
Color: Silver
Shipping Port: XIAMEN, CHINA
Lead Time: 7-15 DAYS, NORMALLY
Brand: Ziyuan
Certification: CE, SGS, ISO, JIS
Material: Aluminum Alloy AL6005

Product Detail Installation Guide Advantage

Ground Adjustable Structure

The main material of this mounting structure is aluminum alloy AL6005-T5. The surface of the product has been anodized. The product has strong corrosion resistance and is suitable for installation of large and medium-sized photovoltaic power plants. It has high pre-assembled characteristics and saves installation time and cost greatly. High-quality design elements and few kinds of accessories make it an efficient solution for photovoltaic engineering.

Specification:

Brand	ZIYUAN
Material	AL6005/T5 & SUS304
Surface Coating	Anodizing
Tilt Angle Range	10~15°, 15~30°& 30~60°
Design Code	JIS C 8955 2017
Standard	AS/NZS 1170
Wind Speed	60m/s
Snow Load	1.4KN/m²
Warranty	15years
Service Life	20years

Design Drawing:

Components

Warranty:

ZIYUAN Energy guarantees continuous power generation for 25 to 30 years.

The structure offered by Ziyuan Energy has 25 years service life and we offer warranty for 12 years.

The power output decreases by 2% in the first year and then by 0.45% each year from the second year through the 30th year.

This long-term durability allows clients to make sustained investments and plan stable business operations.

Our Factory:

Product Package:

Installation Guide

1 Installation of Cement Blocks

1.1 Make the Cement Blocks. Mark the position of 4 mounting holes as per below dimension (to fit with the Base of Mounting Structure). Then drill the holes (each one is φ14mm and depth 75mm) on the marked position.

1.2 Position the Cement Blocks according to the distance marked in design drawings.

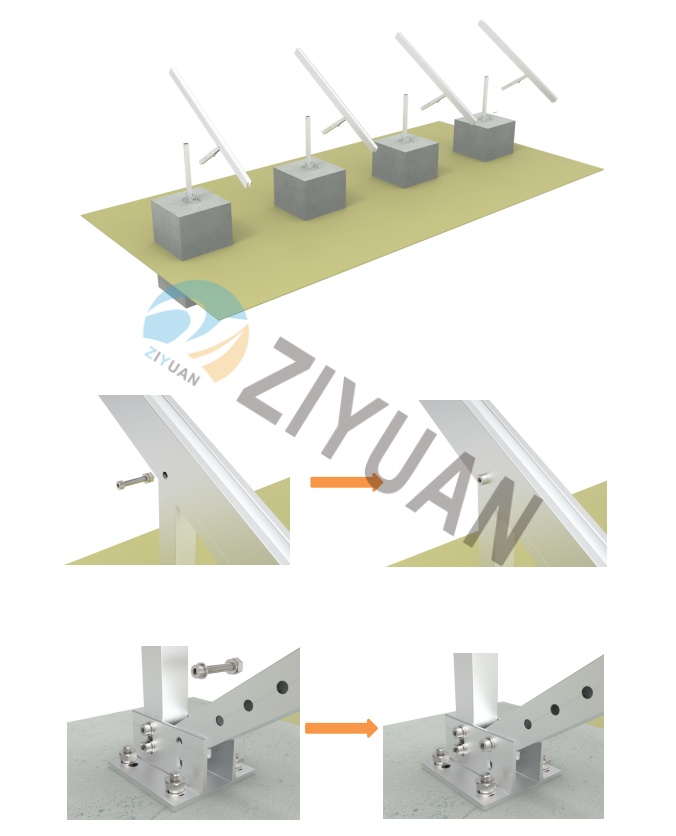

2 Installation of Beam and Column

2.1 Install the Base & Column by locking the Base on the Cement Blocks with M10*100 Expansion Bolt.

2.2 Unfold the Beam & Bracing, lock the Beam on the Column with M8*60 bolt and lock the bracing on the Base with M8*60 bolt.

2.3 As per exact requirement of tilt angle, adjust the Bracing and choose correct hole to lock the M8*50 bolt to get the certain tilt angle.

4 Installation of Rail

4.1 Rail connection

Insert the Rail Connector into two Rail, lock the bolt tightly.

4.2 Install the Rail on the Beam with Rail Clamp, fasten the bolt tightly.

5 Installation of Solar Panels

Install the Solar Panels on the Rail, use the End Clamp and Mid Clamp (with Earthing Plate) to fix and fasten the bolt tightly.

6 Installation of Grounding Lug

Install a Grounding Lug on the end of each Rail.

1.Own Factory & Strict QC

Ziyuan has own factory with more than 100 skilled and experienced workers, the production line is strictly in accordance with high standards and attach great importance to quality control and inspection.

2.Professional Service

Ziyuan has an excellent sales team, can quickly respond to customer inquiries and provide professional advice.

3.Experienced Engineer Team

The first-class production engineers, technicians and R & D team offer innovative design and reliable solution to customers based on more than 8 years of experiences.

No comment

Previous : Foldable Triangle Bracket Kit for 2 modules Next : U Steel Ground Mounting Structure

Product Detail

Ground Adjustable Structure

The main material of this mounting structure is aluminum alloy AL6005-T5. The surface of the product has been anodized. The product has strong corrosion resistance and is suitable for installation of large and medium-sized photovoltaic power plants. It has high pre-assembled characteristics and saves installation time and cost greatly. High-quality design elements and few kinds of accessories make it an efficient solution for photovoltaic engineering.

Specification:

Brand	ZIYUAN
Material	AL6005/T5 & SUS304
Surface Coating	Anodizing
Tilt Angle Range	10~15°, 15~30°& 30~60°
Design Code	JIS C 8955 2017
Standard	AS/NZS 1170
Wind Speed	60m/s
Snow Load	1.4KN/m²
Warranty	15years
Service Life	20years

Design Drawing:

Components

Warranty:

ZIYUAN Energy guarantees continuous power generation for 25 to 30 years.

The structure offered by Ziyuan Energy has 25 years service life and we offer warranty for 12 years.

The power output decreases by 2% in the first year and then by 0.45% each year from the second year through the 30th year.

This long-term durability allows clients to make sustained investments and plan stable business operations.

Our Factory:

Product Package:

Installation Guide

Installation Guide

1 Installation of Cement Blocks

1.1 Make the Cement Blocks. Mark the position of 4 mounting holes as per below dimension (to fit with the Base of Mounting Structure). Then drill the holes (each one is φ14mm and depth 75mm) on the marked position.

1.2 Position the Cement Blocks according to the distance marked in design drawings.

2 Installation of Beam and Column

2.1 Install the Base & Column by locking the Base on the Cement Blocks with M10*100 Expansion Bolt.

2.2 Unfold the Beam & Bracing, lock the Beam on the Column with M8*60 bolt and lock the bracing on the Base with M8*60 bolt.

2.3 As per exact requirement of tilt angle, adjust the Bracing and choose correct hole to lock the M8*50 bolt to get the certain tilt angle.

4 Installation of Rail

4.1 Rail connection

Insert the Rail Connector into two Rail, lock the bolt tightly.

4.2 Install the Rail on the Beam with Rail Clamp, fasten the bolt tightly.

5 Installation of Solar Panels

Install the Solar Panels on the Rail, use the End Clamp and Mid Clamp (with Earthing Plate) to fix and fasten the bolt tightly.

6 Installation of Grounding Lug

Install a Grounding Lug on the end of each Rail.

Advantage

1.Own Factory & Strict QC

Ziyuan has own factory with more than 100 skilled and experienced workers, the production line is strictly in accordance with high standards and attach great importance to quality control and inspection.

2.Professional Service

Ziyuan has an excellent sales team, can quickly respond to customer inquiries and provide professional advice.

3.Experienced Engineer Team

The first-class production engineers, technicians and R & D team offer innovative design and reliable solution to customers based on more than 8 years of experiences.
