Tile Roof Hook 01 Mounting Structure

solar energy

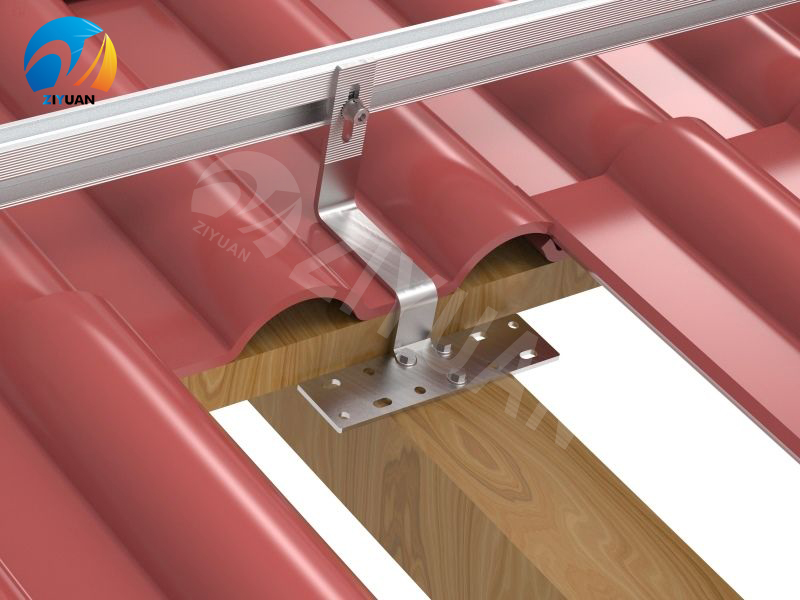

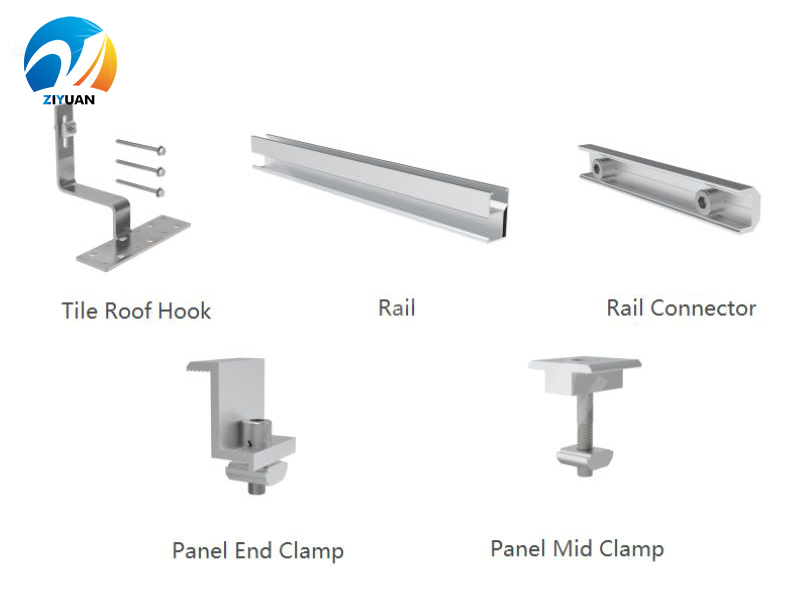

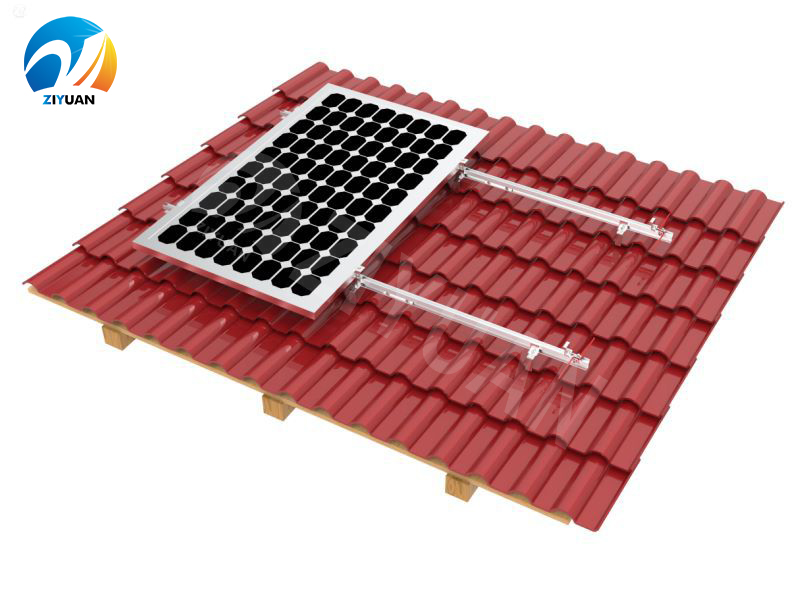

Tile Roof Hook mounting system is a common solution for ceramic tile and glazed tile rooftop, the main parts are Tile Roof Hook, Rail, Rail Connector, Mid Clamp and End Clamp.

Item: Tile Roof Hook 01 Mounting Structure
Payment: T/T, PAYPAL, Western Union, L/C
Product Origin: China,Fujian
Color: Silver
Shipping Port: XIAMEN, CHINA
Lead Time: 7-15 DAYS, NORMALLY
Brand: Ziyuan
Certification: CE, SGS, ISO, JIS
Material: AL6005-T5 & SUS304 & SUS410

Product Detail Installation Guide Advantage

Tile Roof Hook 01 Mounting Structure

Basic Introduction

Tile roof mounting kit allow solar panel installed on tile roof. It's a mart and simple PV mounting solution for residential projects.

The main material of this mounting structure is aluminum alloy AL6005-T5 and stainless steel SUS304. The product has strong corrosion resistance. This mounting kit has high pre-assembled characteristics and saves installation time and cost greatly.

Specification:

Brand	ZIYUAN
Material	AL6005/T5 & SUS304 & SUS410
Surface Coating	Sandblasting
Tilt Angle Range	0~60°
Design Code	JIS C 8955 2017
Standard	AS/NZS 1170
Wind Speed	60m/s
Snow Load	1.4KN/m²
Warranty	15years
Service Life	20years

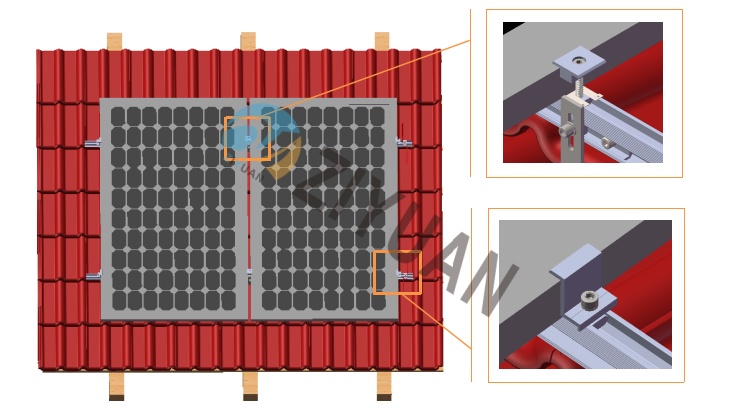

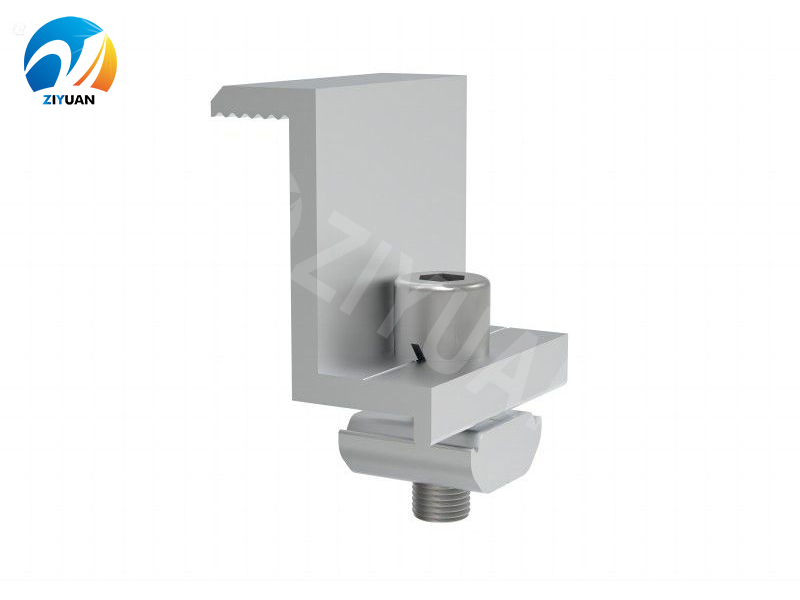

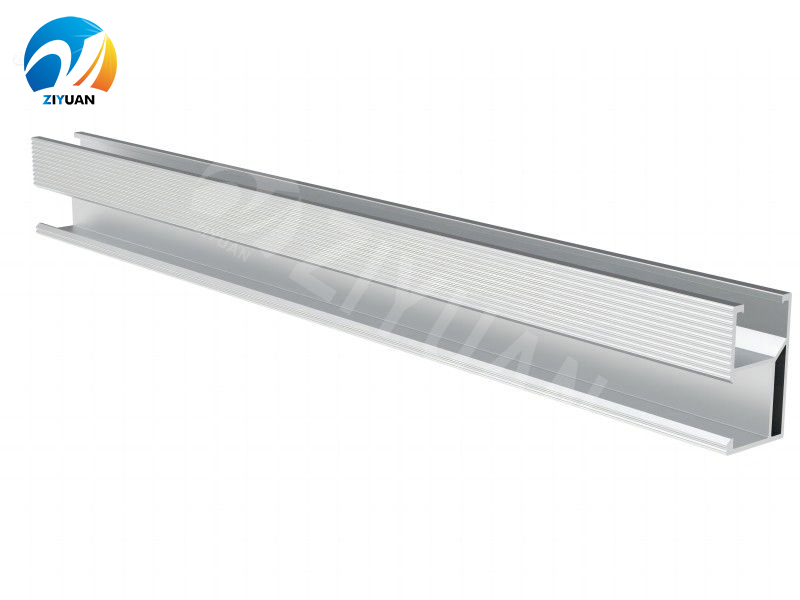

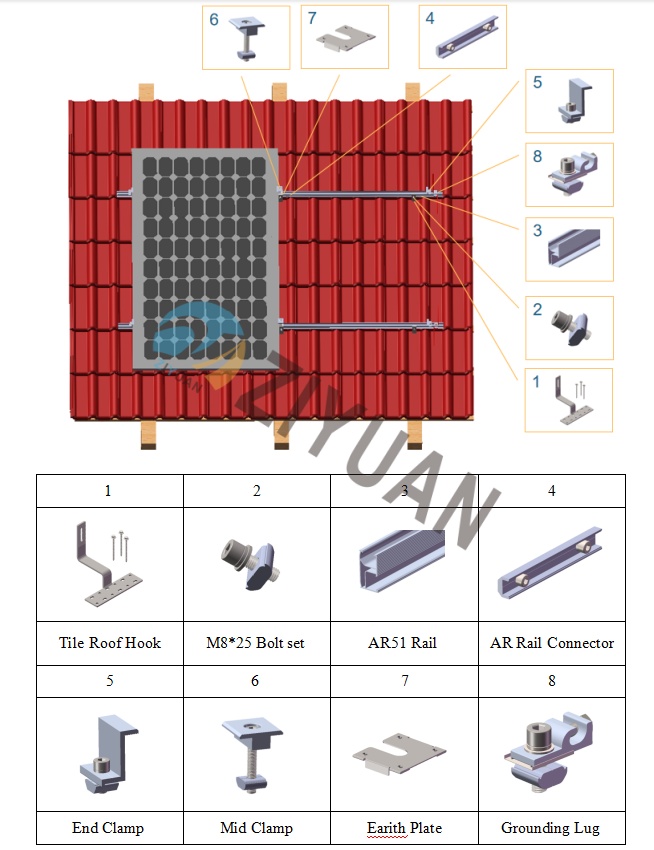

Components：(consider 2 panels mounting)

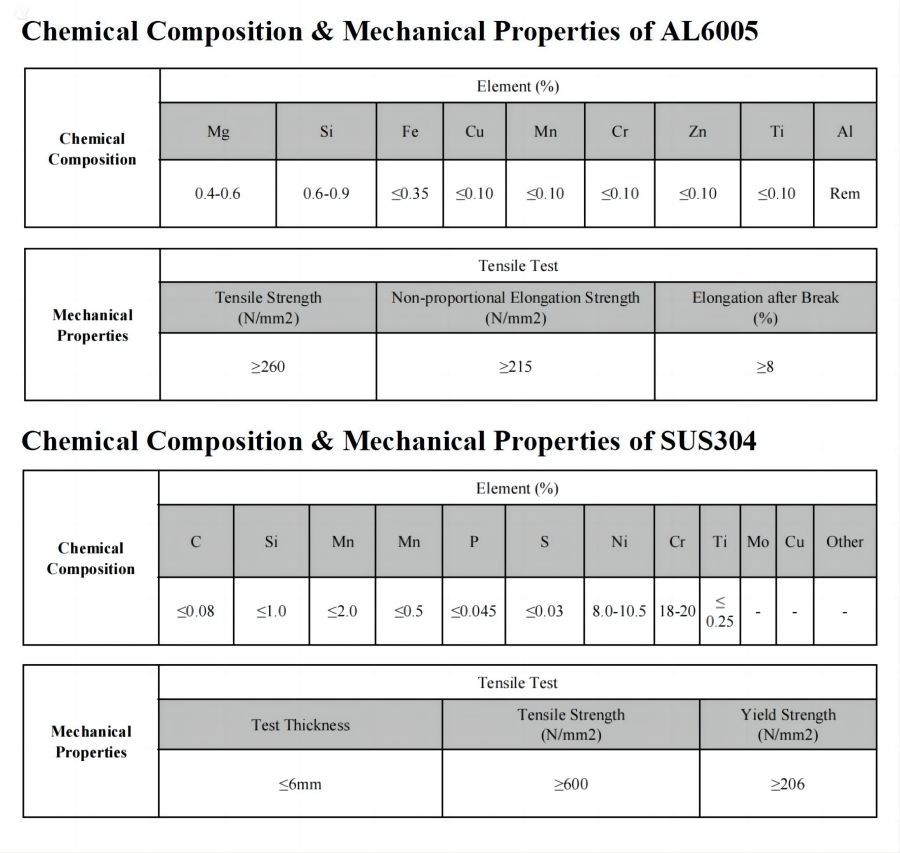

Material Parameters

Warranty:

ZIYUAN Energy guarantees continuous power generation for 25 to 30 years.

The structure offered by Ziyuan Energy has 25 years service life and we offer warranty for 12 years.

The power output decreases by 2% in the first year and then by 0.45% each year from the second year through the 30th year.

This long-term durability allows clients to make sustained investments and plan stable business operations.

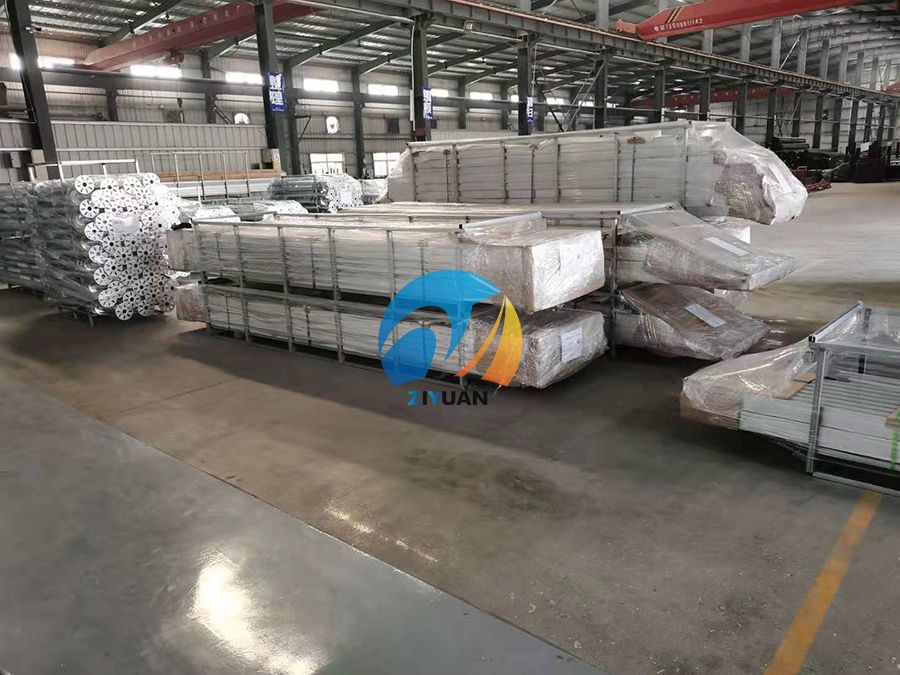

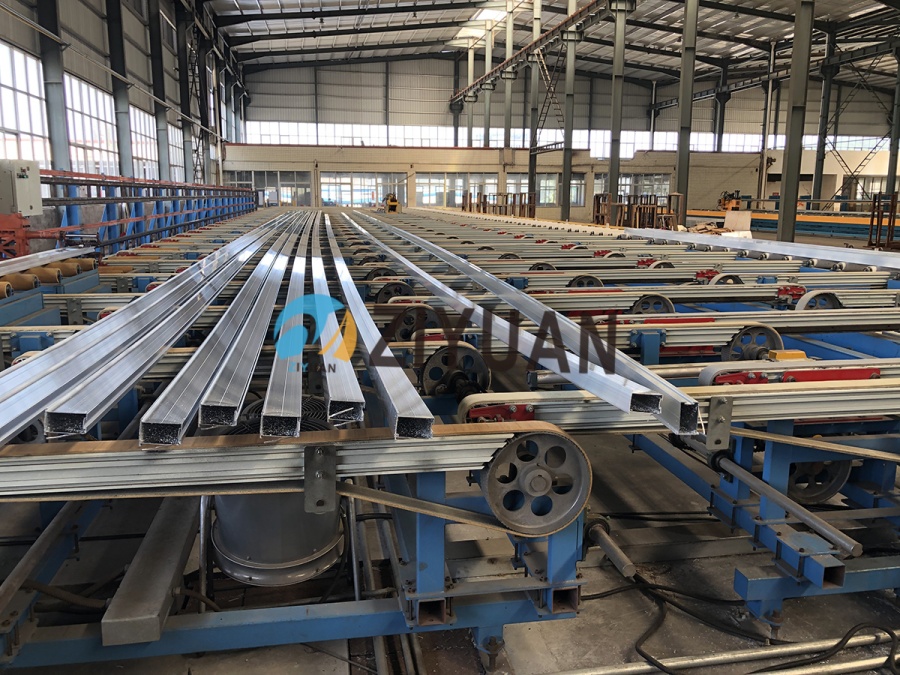

Our Factory:

Product Package:

Installation Guide

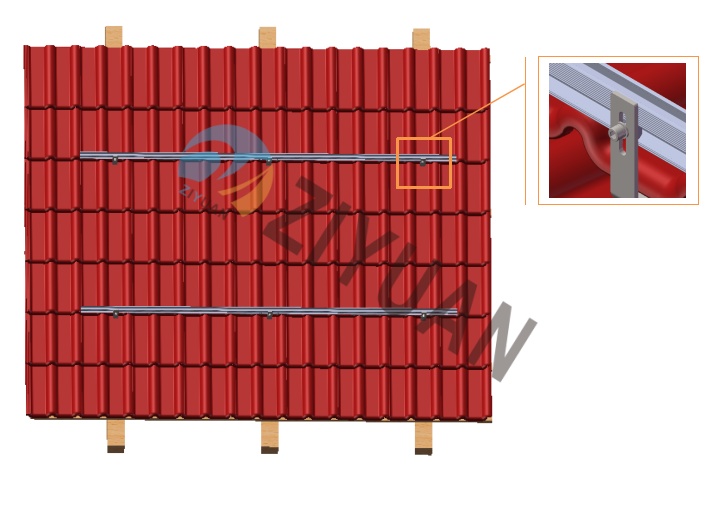

1 Installation of Tile Roof Hook

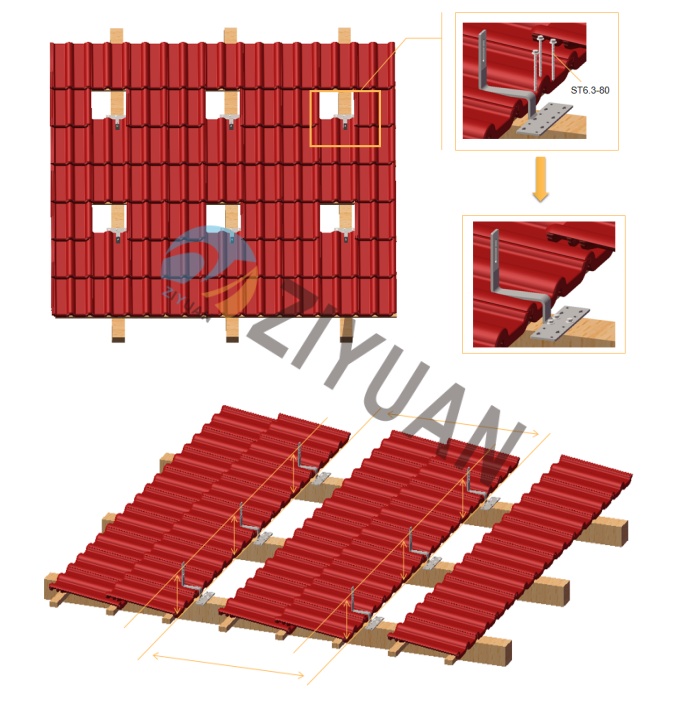

1.1 Lift the tiles and install the Tile Roof Hook on the roof purlin with the st6.3*80 screws. Ensure the Tile Roof Hook are in same level then cover the tile.

2 Installation of Rail

2.1 Rail connection (when Rail length is not enough)

Insert the Rail Connector into two Rail, use M8*10 bolt to fix well

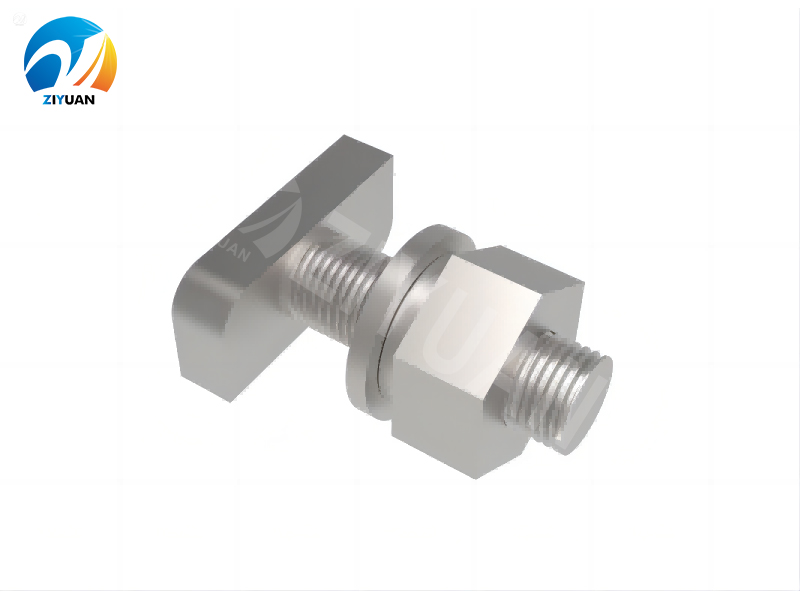

2.2 Install the Rail on the Tile Roof Hook with M8*25 Bolt set, fasten the bolt tightly.

3 Installation of Solar Panels

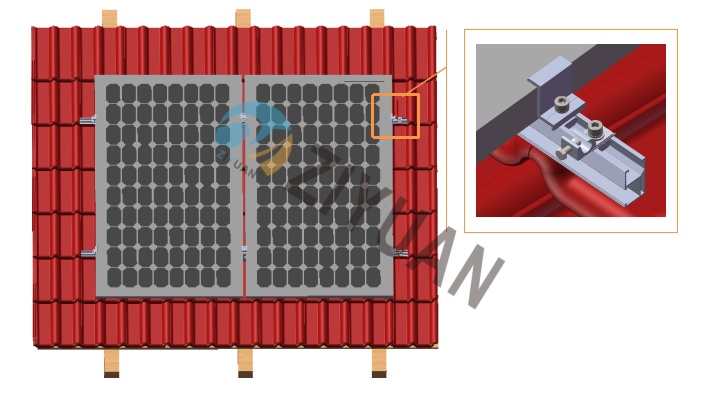

Install the Solar Panels on the Rail, use the End Clamp and Mid Clamp (with Earthing Plate) to fix and fasten the bolt tightly.

4 Installation of Grounding Lug

Install a Grounding Lug on the end of each Rail.
