Customizable L-Feet Solar Mounting System for Metal Roofs | Aluminum Alloy Brackets

Customizable L-Feet Solar Mounting System for Metal Roofs | Aluminum Alloy Brackets

Name: Customizable L-Feet Solar Mounting System for Metal Roofs | Aluminum Alloy Brackets
Rating: 4.5 (86 reviews)

L-feet has been widely used for metal roofing sheets. Both corrugated and trapezoidal sheet metal roofs can be bolted directly to the roof rafters.
L-feet metal roof solar brackets can be used with bolts, hanger bolts and other roof clamps. Both wooden rafters and steel purlins can be fixed directly to the metal roof. It makes the entire installation easy, fast and cost-effective.

Product Detail

Product Description

Customizable L-Feet Solar Mounting System for Metal Roofs | Aluminum Alloy Brackets

This solar PV mounting solution is specifically engineered for metal roof applications. The system utilizes adjustable L-feet brackets to securely fasten solar arrays while preserving roof integrity and streamlining installation.

Main Components:

Suspension Bolts: Specially designed bolts that can be fixed directly to the tin roof.
Solar Racks: Lightweight and high-strength structures made of aluminum alloy or steel.
Connectors: Various clamps, hooks and fasteners to secure solar panels to the bracket.

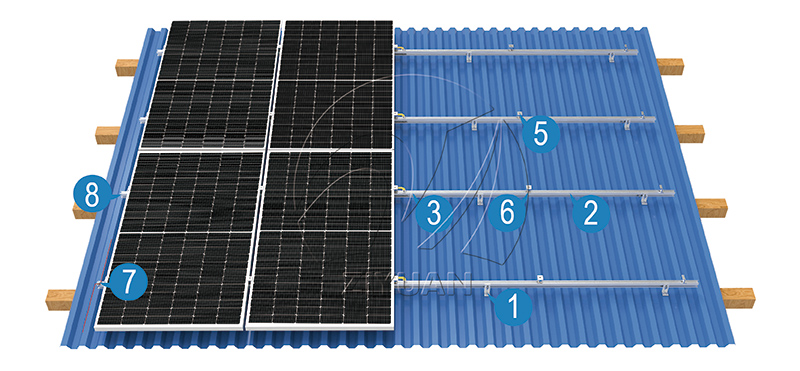

MainParts List

1. L Feet

2. Rail

3. Rail Connector

4. End Clamp

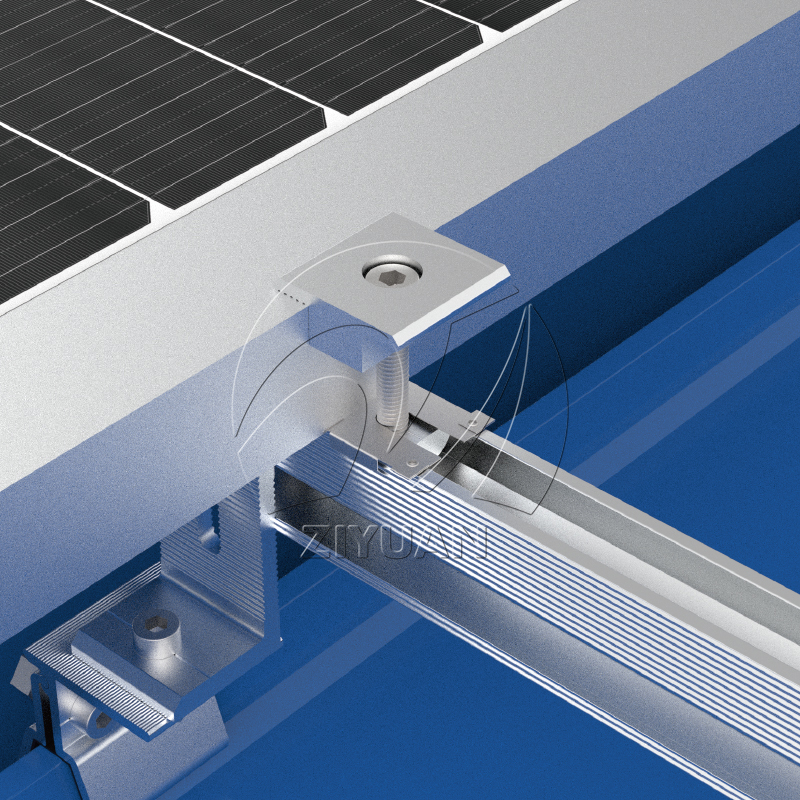

5. Mid Clamp

6. Earthing Plate

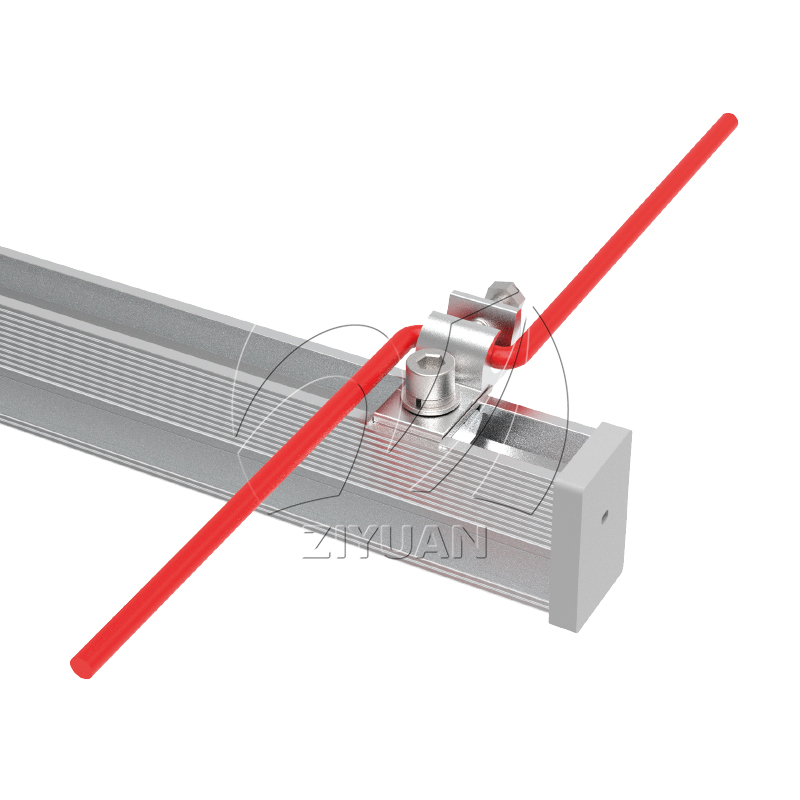

7. Grounding Lug

8. Rail Cap

Key Features

Suitable for corrugated or trapezoidal metal sheet roofs.
Quick and easy installation process with L-feet hanger bolts and rails.
High-quality AL6005-T5 aluminum construction with anodized surface for corrosion resistance.
Rubber gaskets prevent rainwater infiltration.
Vertically adjustable design for optimal installation flexibility.
Secure locking mechanism for wooden rafters or steel purlins.

Parameters

Parameter	Value
Wind Load Resistance	60 m/s
Snow Load Resistance	1.4 kN/m²
Warranty	12-year warranty
Service Life	25-year service life
Product Name	Solar Roof Mounting System
Application	Roof
Material	Aluminum Alloy & Stainless Steel
Certification	CE/ISO9001
Standard	AS/NZS 1170
Surface Treatment	Anodized
Max Snow Load	1.4 kN/m²
Max Wind Speed	216 km/h = 60 m/s
Applicable Modules	Framed or Frameless Modules
Module Orientation	Portrait or Landscape

Strucure Details

Metal Roof Mounting Structure-grounding lug

FAQ

What types of metal roofs is this system compatible with?

This system is compatible with most corrugated or trapezoidal metal sheet roofs. It can be installed on various metal roof types including steel, aluminum, and zinc alloy roofs. Our L-feet brackets are adjustable to fit different roof profiles.

Is professional installation required?

While our system is designed for easy installation, we recommend professional installation to ensure optimal performance and compliance with local codes. Our technical team can provide installation guidelines and support for qualified installers.

How does the system handle extreme weather conditions?

Our mounting system is engineered to withstand extreme weather conditions including high winds (up to 60 m/s) and heavy snow loads (up to 1.4 kN/m²). The aluminum alloy materials provide excellent corrosion resistance, ensuring long-term durability even in harsh environments.

Can the system be adjusted for different module sizes?

Yes, our L-feet brackets are vertically adjustable, allowing for flexibility in mounting different module sizes and orientations. The system supports both portrait and landscape module configurations, providing versatility for various installation requirements.

What maintenance is required for the system?

Our system requires minimal maintenance. We recommend periodic inspections (annually or bi-annually) to check for any loose connections or signs of wear. The anodized surface treatment provides long-lasting protection against corrosion, reducing the need for frequent maintenance.
