Aluminum Ground Mounting Structure

Name: Aluminum Ground Mounting Structure
Rating: 4.5 (81 reviews)

Engineered for durability and efficiency, our high‑strength aluminum solar ground mount features a reinforced concrete base for exceptional stability. Designed for effortless installation and long‑term performance, it delivers outstanding corrosion resistance and a service life of over 25 years — making it an ideal choice for large‑scale photovoltaic (PV) projects.

Product Detail

Product Description

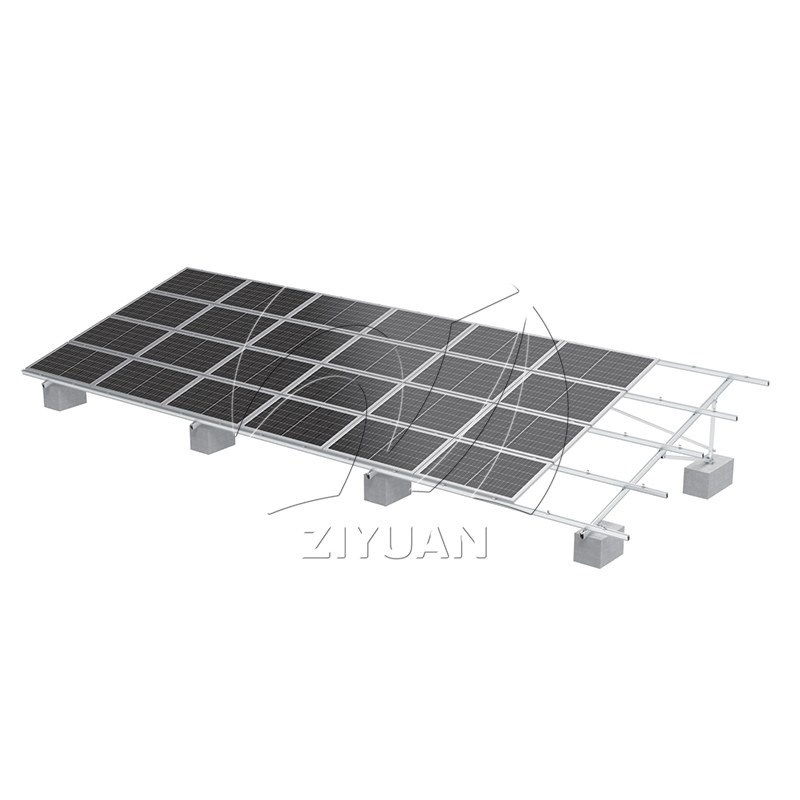

Aluminum Ground Mounting Structure -- Aluminum Solar Ground Mount with Concrete Base

The aluminum ground mounting system with concrete foundation is designed for large-scale commercial and utility solar projects installed on open field areas. Built from high-strength, corrosion-resistant anodized aluminum, it ensures exceptional durability with a service life of over 25 years. The concrete base adapts to various soil conditions and offers outstanding stability, making the installation process faster and more reliable. At Ziyuan, major components are pre-assembled in the factory to greatly reduce on-site labor time and costs. Compatible with both framed and frameless solar modules, this solution is optimized for long-term performance, low maintenance, and maximum energy yield for ground-mounted photovoltaic systems.

Benefits of ground-mounted solar systems:

Material features with high strength superior corrosion resistance, self-repair, long lasting and easy processing.
Ziyuan' s facility preassembles major assemblies, which reduces the amount of labor required on-site.
Conventional specification can be mass-produced to maximum control of production cycle.

Aluminum Ground Mounting Structure -- Aluminum Solar Ground Mount with Concrete Base

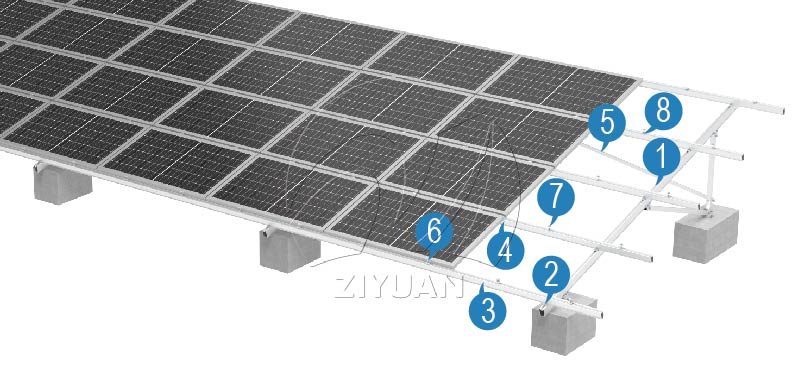

MainParts List

1. Beam kit

2. Rail

3. Rail Connector

4. End Clamp

5. Mid Clamp

6. Earthing Plate

7. Back Bracing

Features

Lightweight and Strong: Aluminum offers a good strength-to-weight ratio, making it easier to handle and install than heavier materials like steel.
Corrosion Resistance: Aluminum naturally resists corrosion, which is crucial for withstanding outdoor elements and extending the lifespan of the mounting system.
Durability: Aluminum ground mounting structures are designed to be robust and withstand various weather conditions, ensuring the stability and longevity of the solar array.
Ease of Installation: Aluminum's lightweight nature simplifies the installation process, potentially reducing labor costs and time.
Environmental Adaptability: Aluminum ground mounts can be used in a wide range of climates and terrains.
Versatility: Aluminum structures can be adapted to different ground conditions, including concrete bases or ground screws.

Parameters

Parameter	Value
Product Name	Aluminum Ground Mounting Structure
Application	Open Field / RC Roof
Material	AL 6005-T5 High Strength Aluminum Alloy
Certification	ISO9001/CE/SGS/UL etc.
Standard	JISC8955-2017 Design Guide on Structures for Photovoltaic Array
Applicable Modules	Framed or Frameless
Module Orientation	Portrait or Landscape
Wind Load Resistance	60 m/s
Snow Load Resistance	1.4 kN/m²
Warranty	12-year warranty
Service Life	25-year service life
Other	Support Customized

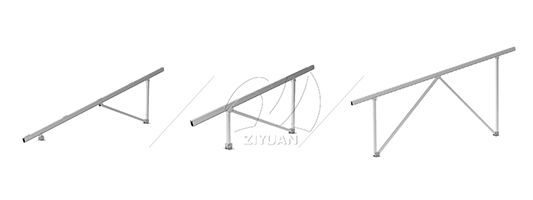

Strucure Details

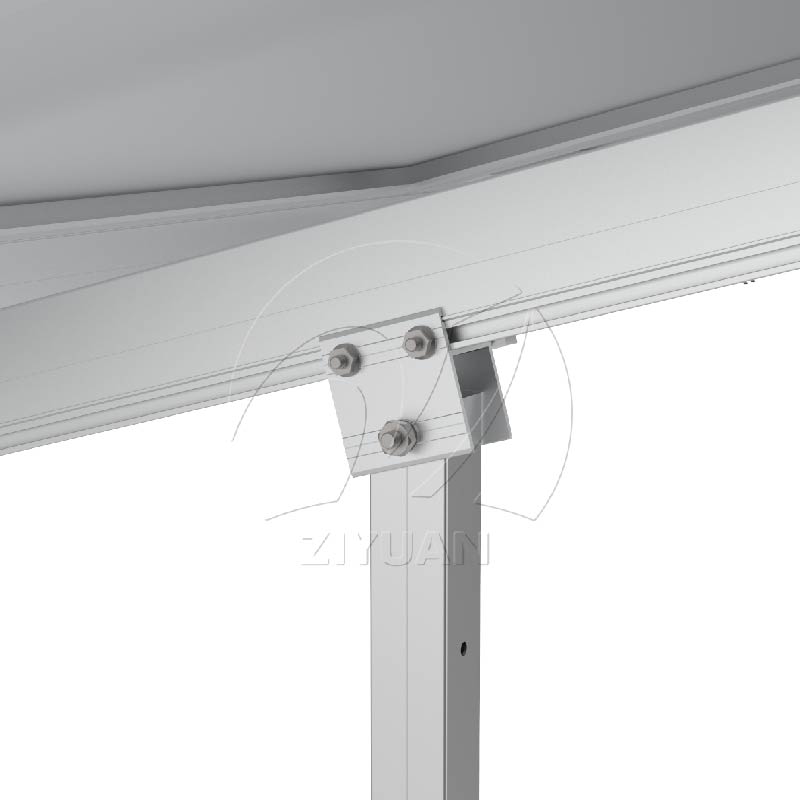

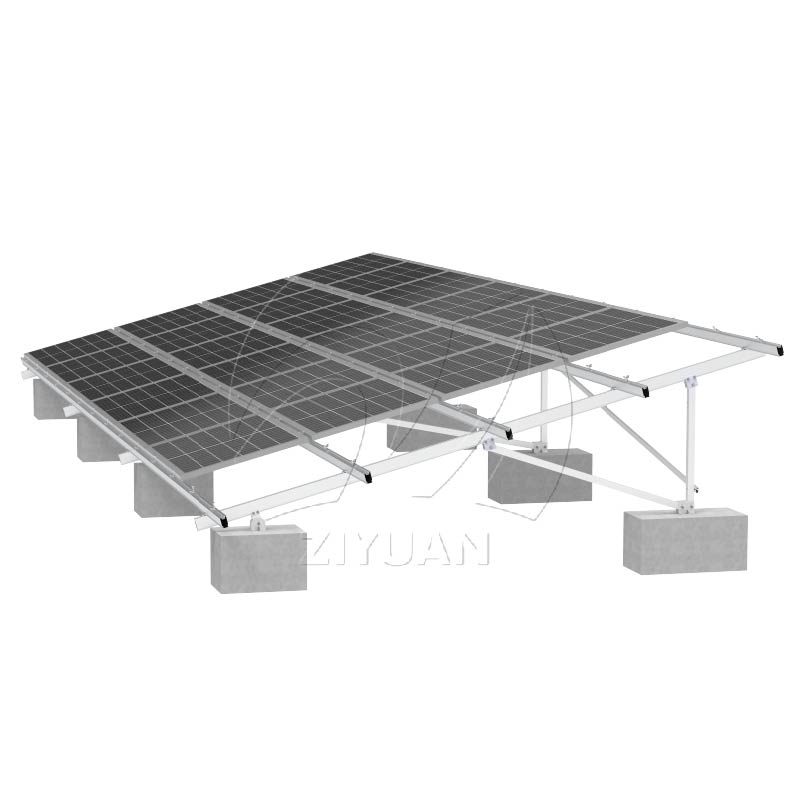

Details of Aluminum Ground Mounting Structure

Aluminum Solar Ground Mount with Concrete Base

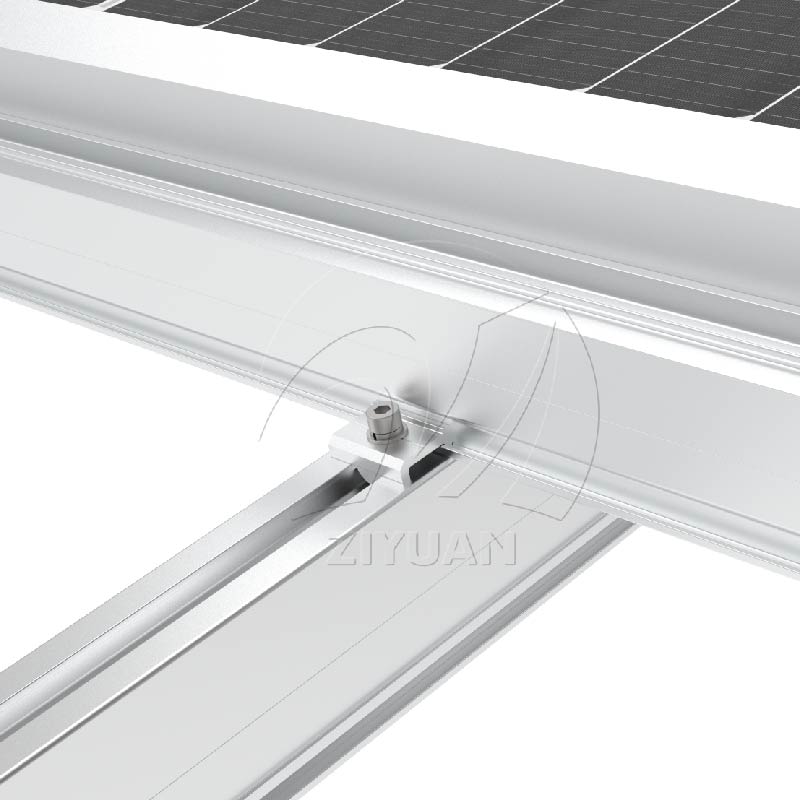

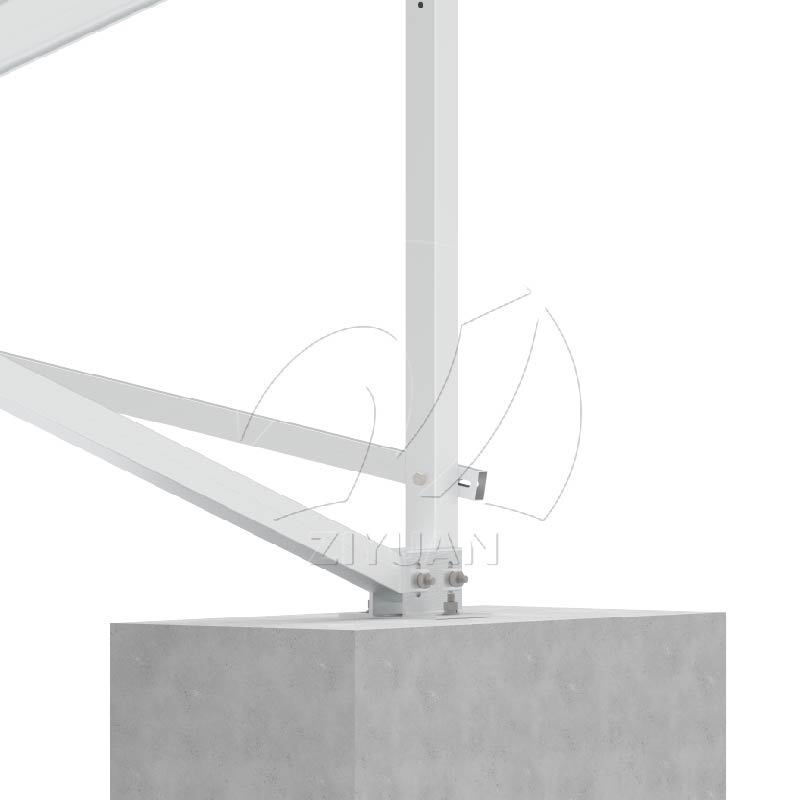

Details of Aluminum Ground Mounting Structure Aluminum Solar Ground Mount with Concrete Base

Case Example

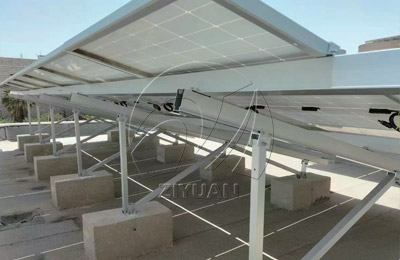

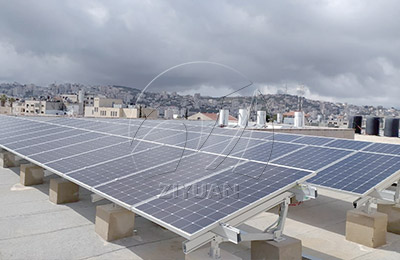

Sample images of Aluminum Ground Mounting Structure

Sample images of Aluminum Solar Ground Mount with Concrete Base

Installation

1: According to the drawing, place the concrete piles first!

2:Open the solar preassembled bracket (Beams) and connect for installation.

3:Secure the base to the concrete pile using expansion bolts.

4:Installation the solar rails on the solar bracket beams.

FAQ

Q1: What are the steps involved in the installation process of the Cement Pier Aluminum Solar Ground Mount System?

The installation process usually includes fabricating or mounting the concrete piers, erecting the aluminum racking, mounting and fixing the solar panels, making the electrical connections, and commissioning the system.

Q2: What site conditions are required for this type of system?

The site needs to be relatively flat and geologically capable of supporting the weight of the concrete piers and the racking system.

Q3: What is the power generation efficiency of the system?

The system’s efficiency is affected by the panel area, mounting angle, geographic location, and sunlight conditions.

Q4: What kind of maintenance is required for the Cement Piers and Aluminum Racks?

The concrete piers require minimal maintenance, mainly checking for cracks or damage. The aluminum alloy racks require regular inspections of the fastening status and cleaning of the panels.

Q5: Is the system suitable for all types of solar projects?

Yes, the system is suitable for all types of ground-mounted solar power projects, from small to large scale.

Q6: How cost-effective is the system?

Due to the cost-effectiveness of the concrete piers and aluminum materials, the system provides an economical solar installation solution.
