Single Pile Ground Mounting Structure

Name: Single Pile Ground Mounting Structure
Rating: 4.9 (87 reviews)

Discover the cost-effective Single Pile Ground Mounting Structure for large and small solar PV projects. Made from galvanized steel with pre-assembled parts, this adaptable solution ensures quick installation, strong integrity, and long service life. Suitable for flat and uneven ground, adjustable pile depth and tilt angles optimize sun exposure. Certified for durability and corrosion resistance, ideal for utility-scale solar farms and mountainous sites.

Product Detail

Product Description

Single Pile Ground Mounting Systems

Single Pile Ground Mounting Structure is a cost-effective and efficient racking solution suitable for both large-scale and small utility solar PV projects. Unlike ground screw systems that require specialized pile driving machinery, this single pile design saves labor and installation time. For flat and clear open ground, galvanized steel piles are simply punched into the soil. On uneven terrain, the piles are first adjusted to create a horizontal plane before fixing the aluminum racking system onto the beams. Furthermore, the driving depth of the piles can be adjusted to meet specific angle requirements, making this mounting structure highly adaptable and widely used in large-scale solar PV plants, including those located on mountainous sites.

Benefits of Single Pile Ground Mounting Systems:

Easy Installation .
Pre-assembled design save on-site installation time.
Single arm or double arm design.

Single Pile Ground Mounting Structure -- Single Pile Ground Mounting Systems

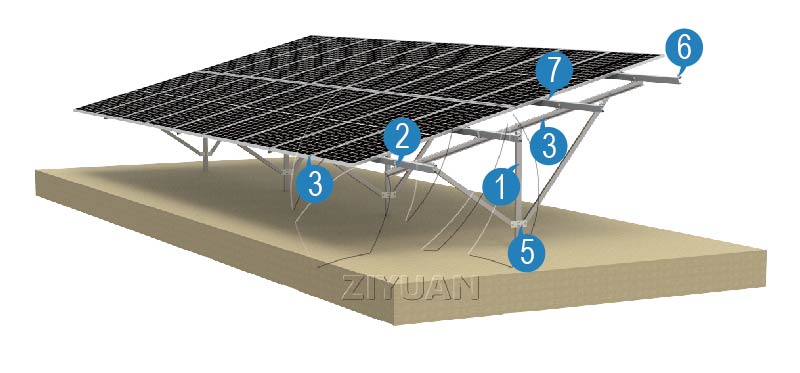

MainParts List

1. Beam Kit

2. Rail Clamp

3. C Rail

4. Rail Connector

5. Oblique span

6. End Clamp

7. Mid Clamp

Features

Efficiency: Single pile design reduces ramming time by half, accelerating project completion.
Cost-saving: Quick piling method for ramming posts significantly lowers on-site construction costs.
Convenience: Most components come pre-assembled from the factory, eliminating the need for extra cutting work in the field.

Parameters

Parameter	Value
Product Name	Single Pile Ground Mounting Structure
Application	Open Field
Material	AL 6005-T5 High Strength Aluminum Alloy & Steel with ZAM Coating
Certification	ISO9001/CE/SGS/UL etc.
Standard	JISC8955-2017 Design Guide on Structures for Photovoltaic Array
Applicable Modules	Framed or Frameless
Module Orientation	Portrait or Landscape
Wind Load Resistance	60 m/s
Snow Load Resistance	1.4 kN/m²
Warranty	12-year warranty
Service Life	25-year service life
Other	Support Customized

Strucure Details

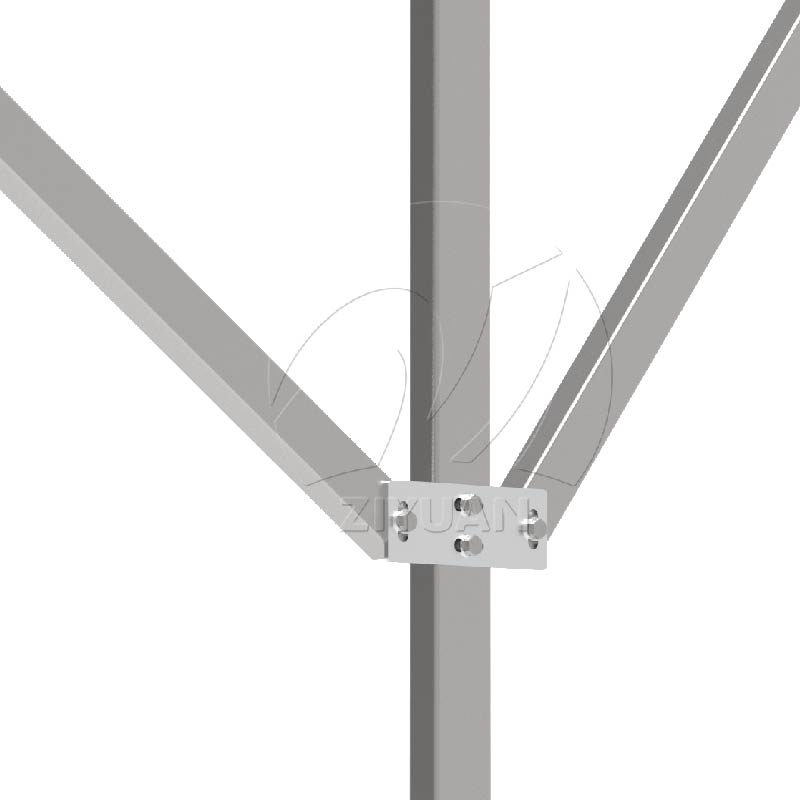

Details of Aluminum Ground Mounting Structure

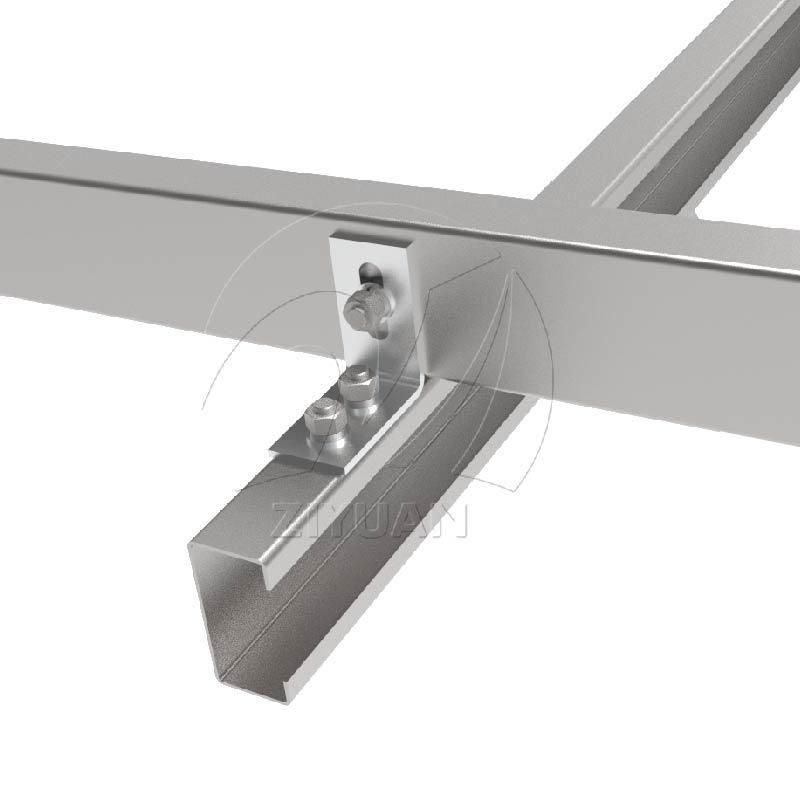

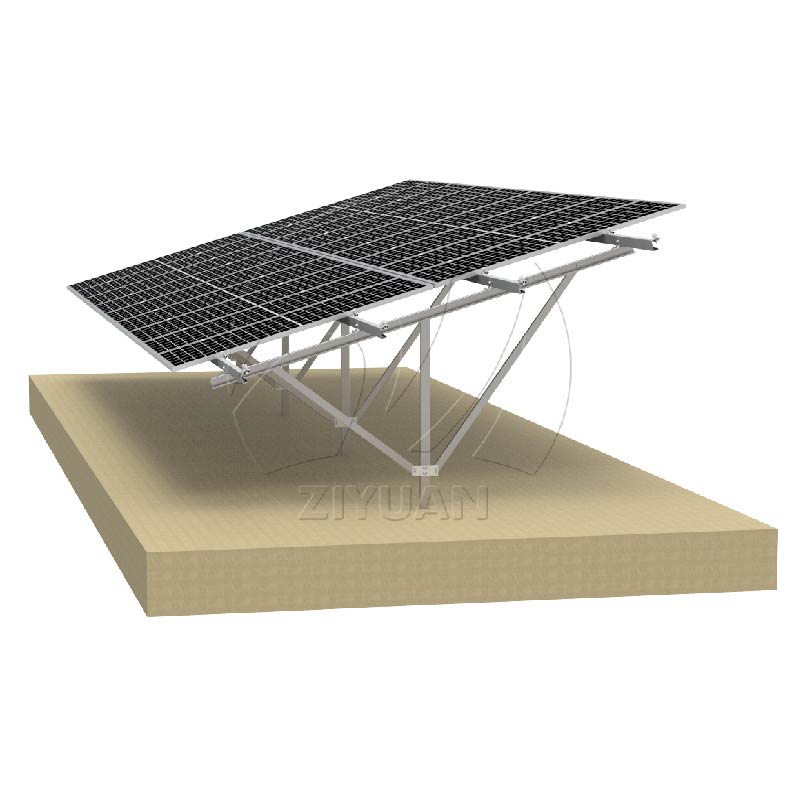

Aluminum Solar Ground Mount with Concrete Base

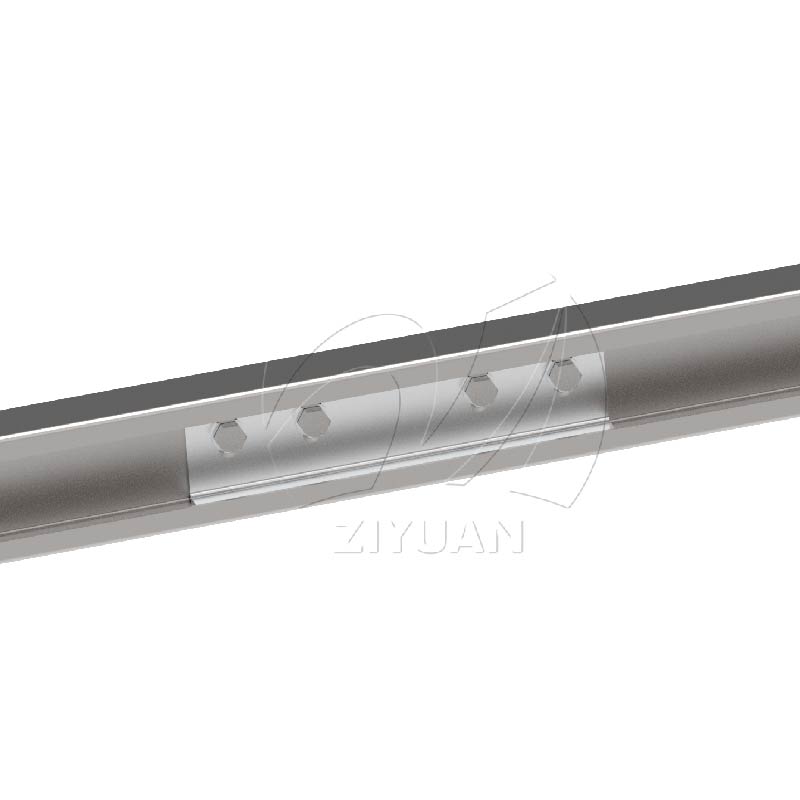

Details of Aluminum Ground Mounting Structure Aluminum Solar Ground Mount with Concrete Base

Case Example

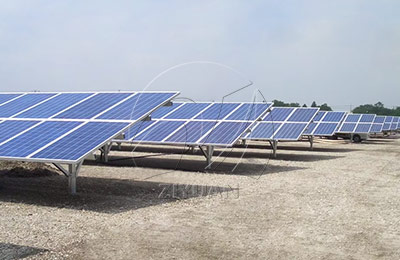

Sample images of Single Pile Ground Mounting Structure

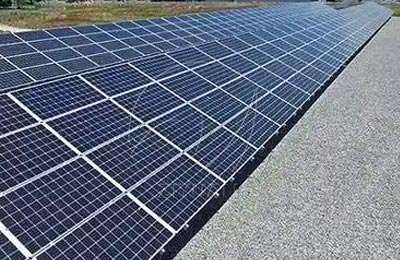

Sample images of Single Pile Ground Mounting Systems

Installation

1. Drive piles into the earth

2. Opem Beam Kit

3. Install Beam Kit on pile

4. Install rail

5. Install Modules

FAQ

Q1: What is a piled foundation in solar mounting systems?

A piled foundation is one of the most common and reliable foundation types used in ground-mounted solar panel installations. It consists of driven steel piles that provide strong and stable support for solar mounting structures. These steel piles are usually installed quickly and precisely using a piling rig, but they can also be secured in concrete for enhanced stability in challenging soil conditions.

Our solar piled foundations are made from premium structural grade steel, available in multiple thicknesses and coated for superior corrosion resistance. This ensures easy installation, maximum durability, and long-term performance in all weather environments, making them ideal for utility-scale and commercial solar projects.

Q2: What advantages do piled foundations offer?

Stability: They provide a stable base for the solar panels, even in weak or unstable soil conditions.

Load-bearing capacity: They can support heavy loads.

Reduced settlement: They minimize the risk of the solar panel system sinking into the ground.

Suitable for various soil conditions: They can be used in a variety of soil types, including soft soil, sandy soil, and even rocky ground.

Q3: How do you design a solar panel structure?

Designing a solar panel mounting structure requires careful consideration of structural integrity, efficiency, safety, and aesthetics. Key factors include accounting for wind, snow, and seismic loads, ensuring proper ventilation and drainage, and optimizing panel orientation and spacing. The design must also address grounding and electrical system integration to maintain safety and functionality. Additionally, the mounting system should be engineered for durability with a minimum service life of 25 years, ensuring sufficient loading capacity, stiffness, stability, and deformation resistance. This comprehensive approach guarantees a reliable, efficient, and long-lasting solar installation.
